Product Description
| Type | Description |
| PART# | W2E143-AA09-25 |
| Category | Fans, Blowers, Thermal Management |
| Fans | |
| AC Fans | |
| Manufacturer | / |
| Series | W2E143 |
| Packaging | Bulk |
| Part Status | Active |
| Voltage - Rated | 230VAC |
| Size / Dimension | Round - 171.5mm Dia |
| Width | 51.00mm |
| Air Flow | - |
| Static Pressure | - |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | - |
| Noise | - |
| Power (Watts) | 26.00W |
| RPM | 3300 RPM |
| Termination | 2 Terminals |
| Ingress Protection | IP20 |
| Operating Temperature | -13 ~ 158°F (-25 ~ 70°C) |
| Approval Agency | CE, VDE |
| Weight | 2.3 lbs (1 kg) |
| Current Rating (Amps) | 0.110A |
| Voltage Range | - |
| Material - Frame | Aluminum |
| Material - Blade | Steel |
| Base Product Number | W2E143 |

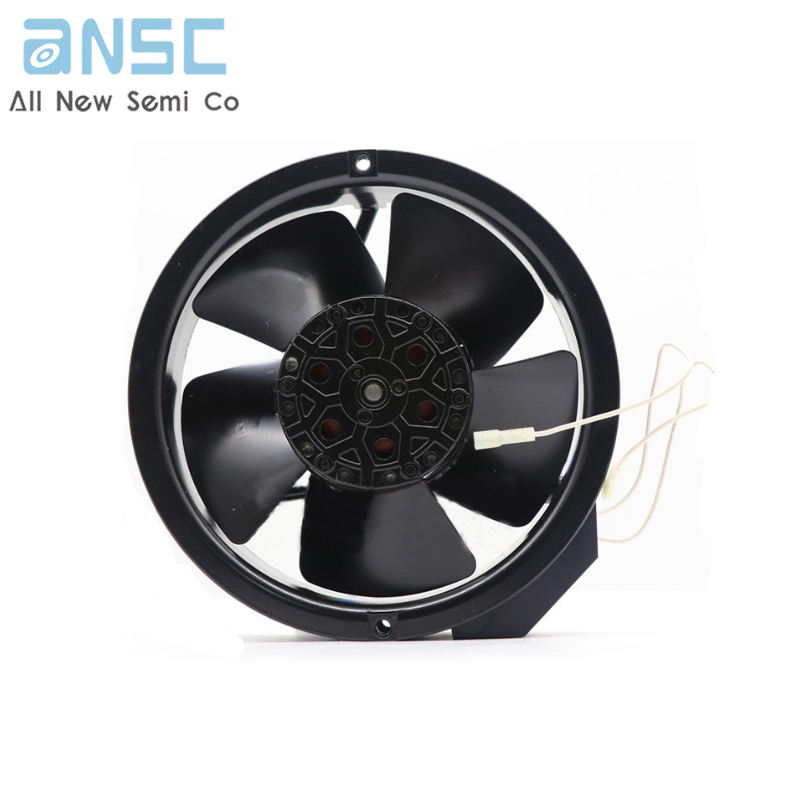

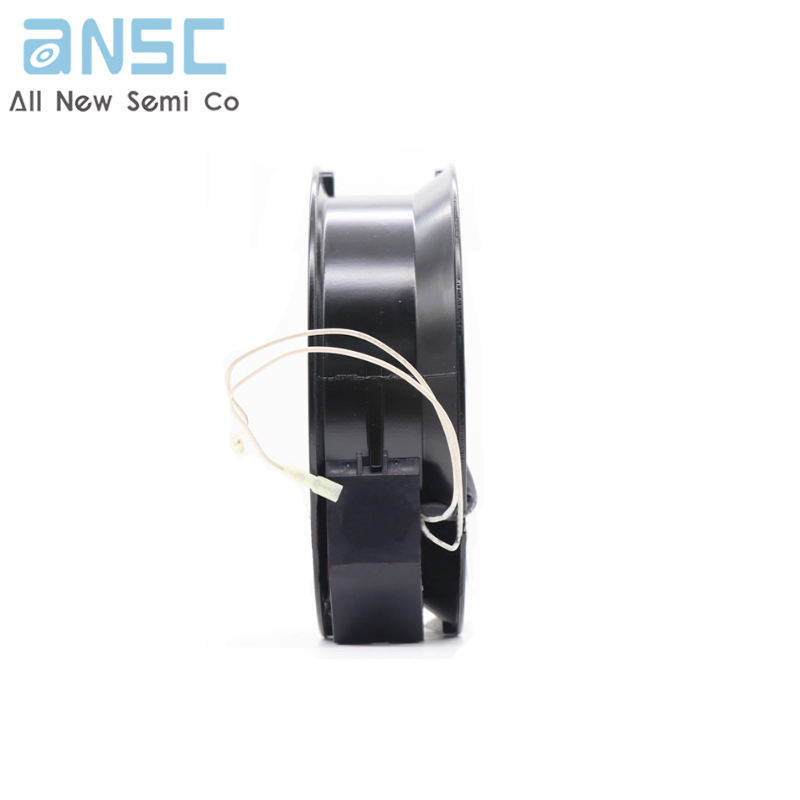

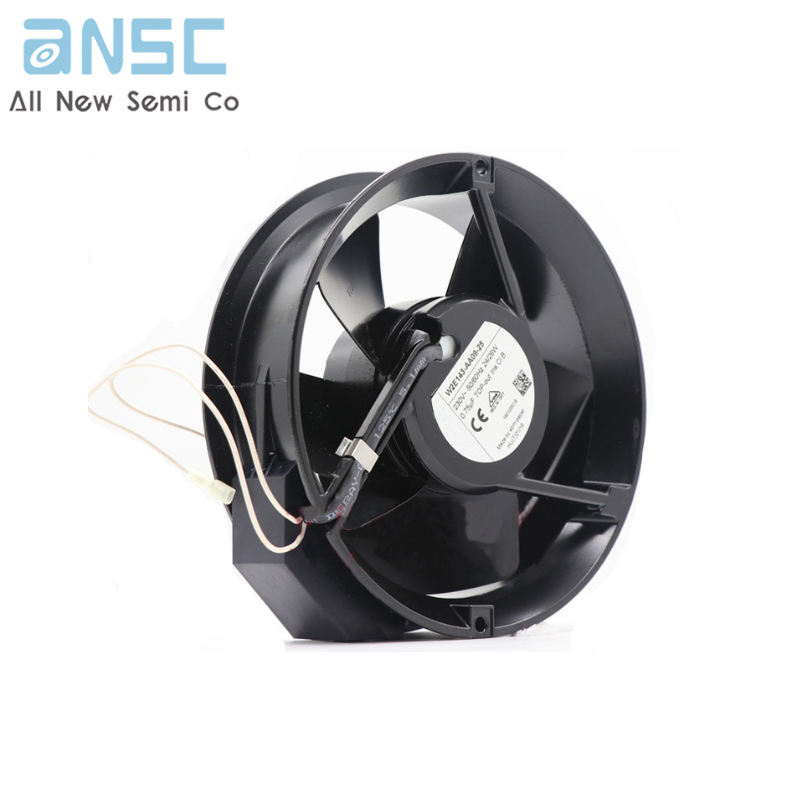

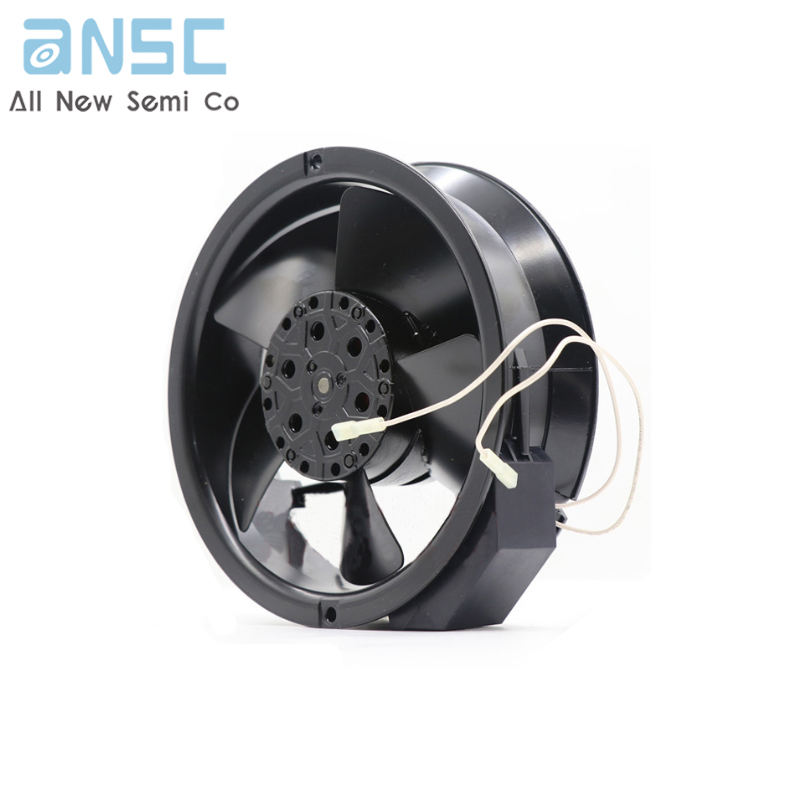

Actual image of the product
