Product Description
Type | Description |
|---|---|
PART# | 3414N |
Category | Fans, Blowers, Thermal Management Fans DC Brushless Fans (BLDC) |
Mfr | / |
Series | 3400N |
Packaging | Bulk |
Part Status | Active |
Voltage - Rated | 24VDC |
Size / Dimension | Square - 92mm L x 92mm H |
Width | 25.40mm |
Air Flow | 49.4 CFM (1.38m3/min) |
Static Pressure | - |
Bearing Type | Ball |
Fan Type | Tubeaxial |
Features | - |
Noise | 32.0dB(A) |
Power (Watts) | 2.3 W |
RPM | 2700 RPM |
Termination | 2 Wire Leads |
Ingress Protection | - |
Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) |
Approval Agency | CSA, UL, VDE |
Weight | 0.22 lb (99.79 g) |
Current Rating (Amps) | - |
Voltage Range | 18 ~ 28VDC |
Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
Lifetime @ Temp. | 70000 Hrs @ 40°C |

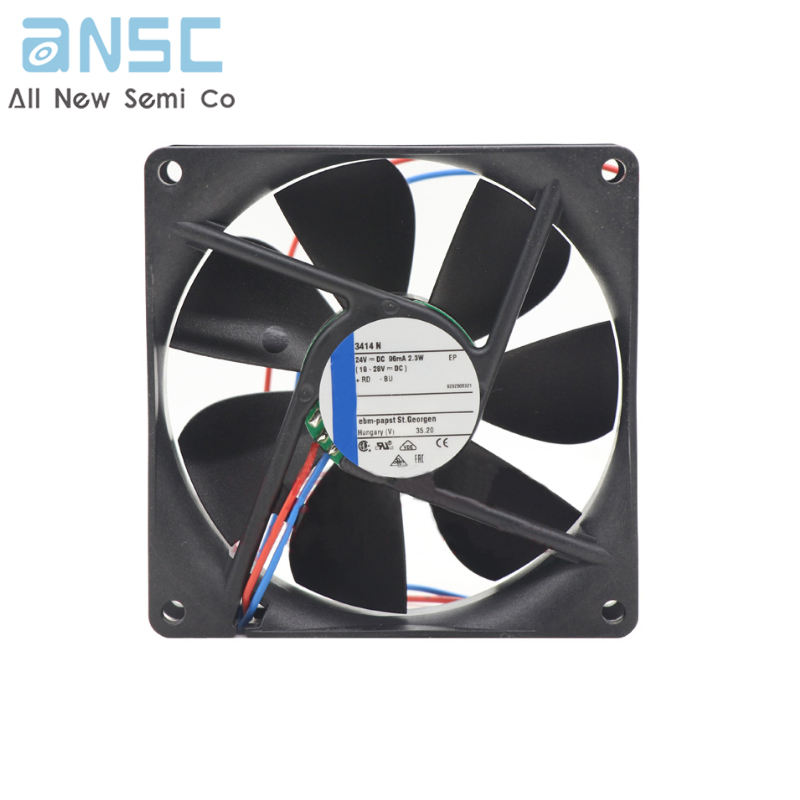

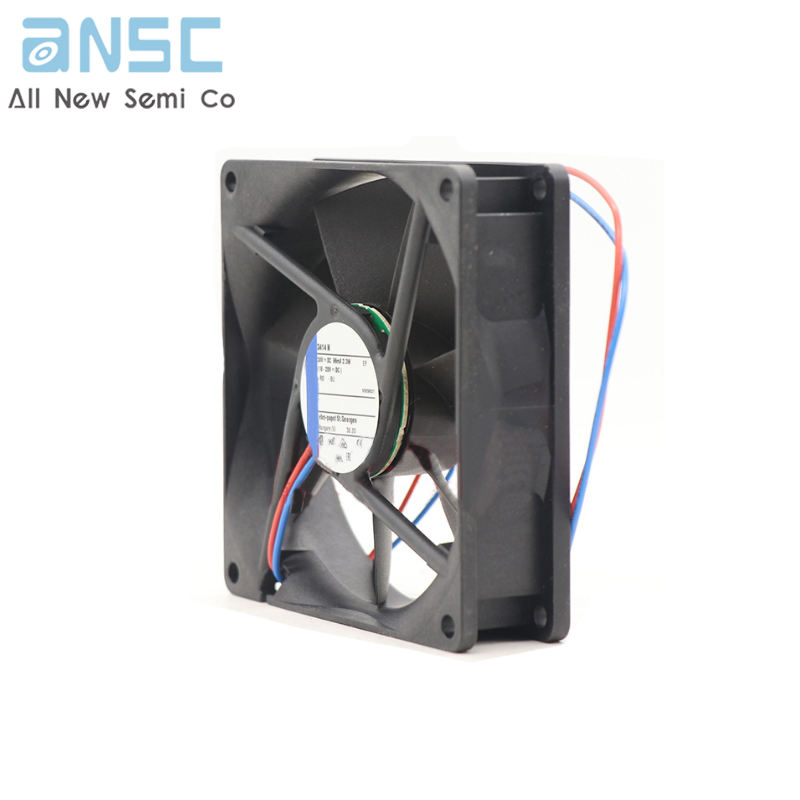

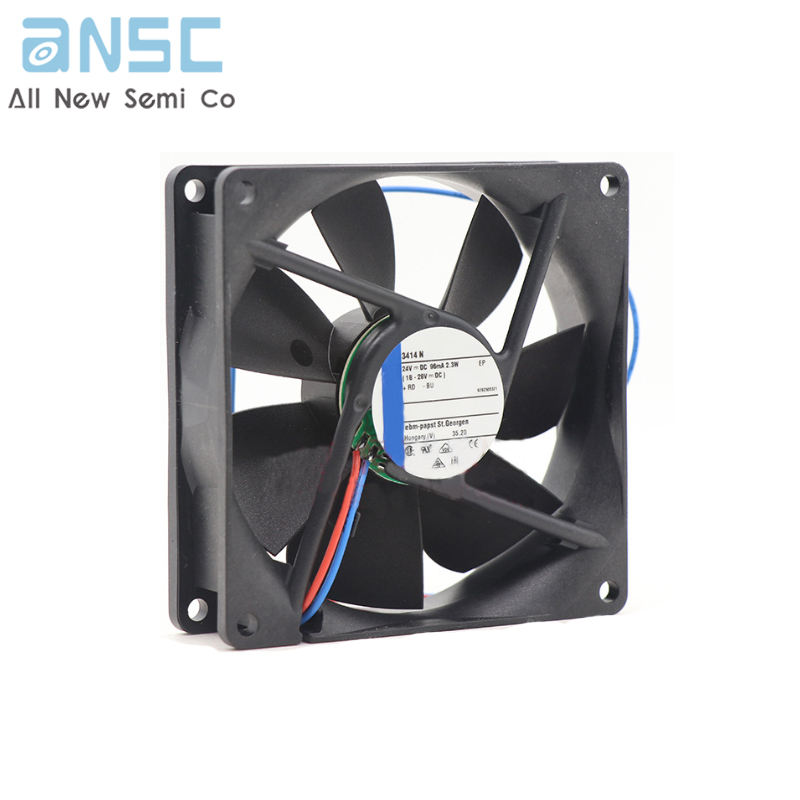

Actual image of the product
