Product Description
Type | Description |
|---|---|
PART# | FFB1224EHE |
category | Fans, fans, thermal management Fan Brushless DC Fan (BLDC) |
manufacturer | / |
series | FFB |
Packaging | box |
Part status | On sale |
Voltage - Rating | 24VDC |
Size / Dimensions | Square - 120mm long x 120mm high |
Width | 38.00mm |
Airflow | 190.0 CFM (5.32 m3/min) |
Static pressure | 0.700" water column (174.4 Pa) |
Bearing type | Roll-on |
Fan type | Tube shaft type |
Characteristics | Rotor locking protection |
Noise | 59.0dB（A） |
Power (W) | 24 W |
RPM | 4000 RPM |
Termination | 2 leads |
Intrusion protection | - |
Operating temperature | 14~122°F(-10~50°C) |
Certification body | CE,CSA,UL,VDE |
weight | 0.816 lbs (370.13 g) |
Rated current (amps) | 1.00A |
Voltage range | 14 ~ 26.4VDC |
Material - frame | plastic |
Material – inserts | plastic |
Service life at different temperatures | 70000 hours @ 40°C |
Base product number | FFB1224 |

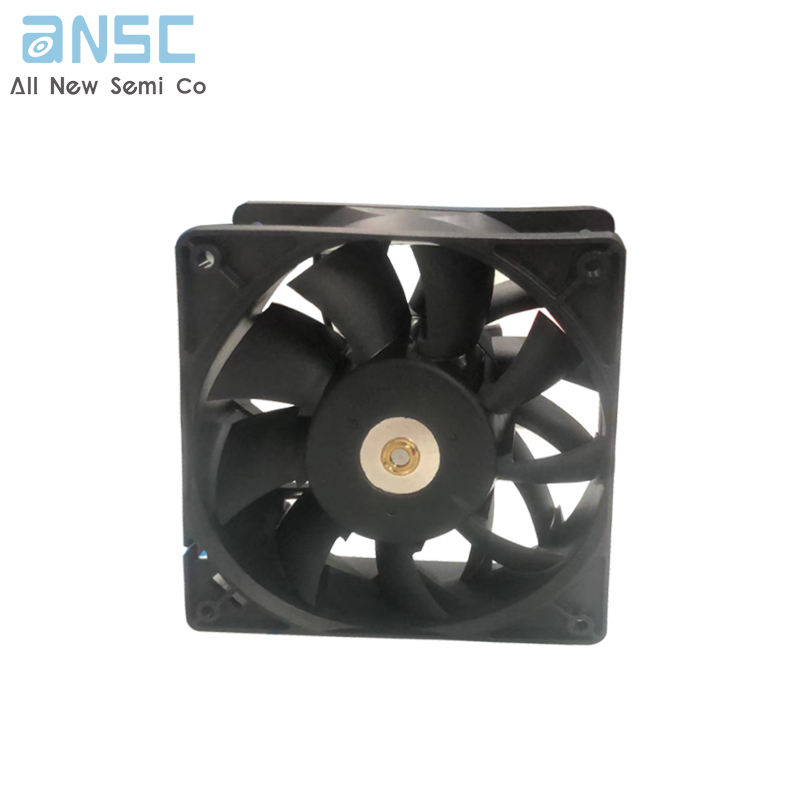

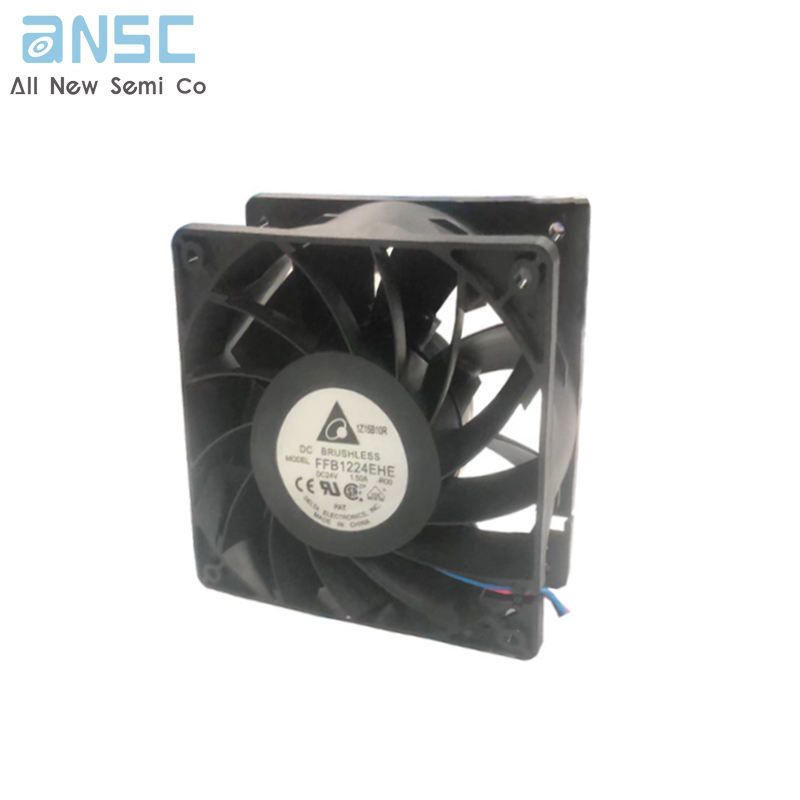

Actual image of the product
