Product Description
| Type | Description |
| PART# | AFB0612HD |
| Category | Fans, Blowers, Thermal Management |
| Fans | |
| DC Brushless Fans (BLDC) | |
| Mfr | / |
| Series | AFB |
| Packaging | Box |
| Part Status | Active |
| Voltage - Rated | 12VDC |
| Size / Dimension | Square - 60mm L x 60mm H |
| Width | 20.00mm |
| Air Flow | 16.6 CFM (0.465m3/min) |
| Static Pressure | 0.189 in H2O (47.1 Pa) |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Protection |
| Noise | 28.0dB(A) |
| Power (Watts) | 1.32 W |
| RPM | 4000 RPM |
| Termination | 2 Wire Leads |
| Ingress Protection | - |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) |
| Approval Agency | CE, CSA, UL, VDE |
| Weight | 0.137 lb (62.14 g) |
| Current Rating (Amps) | 0.110A |
| Voltage Range | 7 ~ 13.8VDC |
| Material - Frame | Plastic |
| Material - Blade | Plastic |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Base Product Number | AFB0612 |

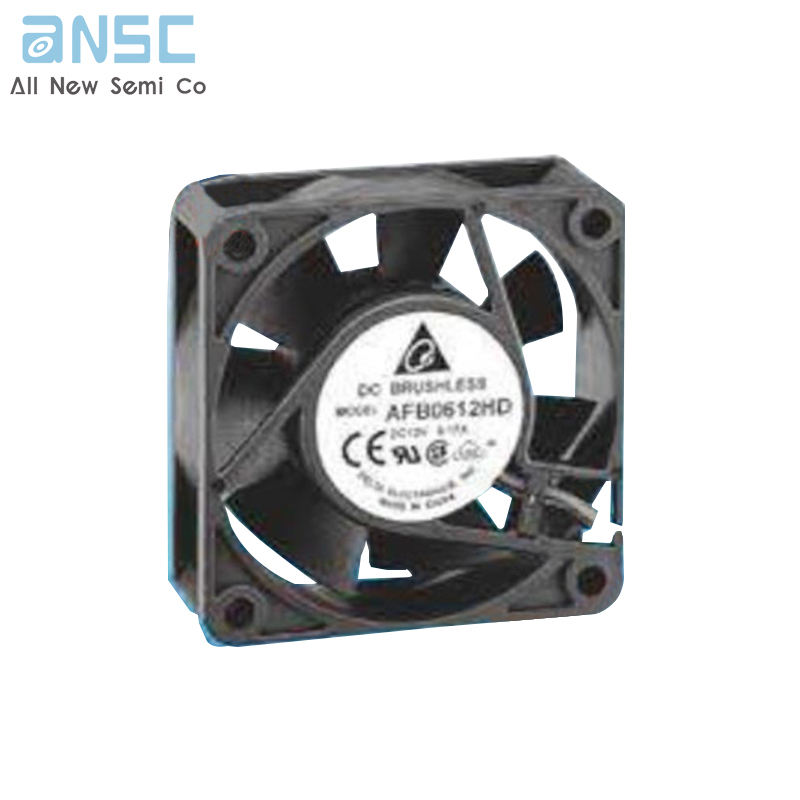

Actual image of the product
