Product Description
| Product attributes | Attribute value |
| PART# | AD1224HX-F52 |
| Manufacturer: | / |
| Product Types: | DC fan |
| Type: | Axial |
| Height: | 120 mm |
| Depth: | 38 mm |
| Width: | 38 mm |
| Operating Supply Voltage: | 24 VDC |
| Airflow: | 122 CFM (3.5 m3/min) |
| Speed: | 3200 RPM |
| Bearing Type: | Ball |
| Noise: | 48 dBA |
| Power Rating: | 9.6 W |
| Features: | Locked Rotor Sensor |
| Housing Material: | Aluminum |
| Termination Type: | Wire Leads |
| Series: | AD 120x38 |
| Trademarks: | ADDA |
| Current Type: | DC |
| Height – mm: | 120 mm |
| Length: | 120 mm |
| Length – mm: | 120 mm |
| Product Type: | DC Fans |
| Subcategories: | Fans, Blowers & Accessories |
| Width – mm: | 38 mm |
| Part Number Alias: | AD1224UB-F52(N) |
| Unit Weight: | 235 g |

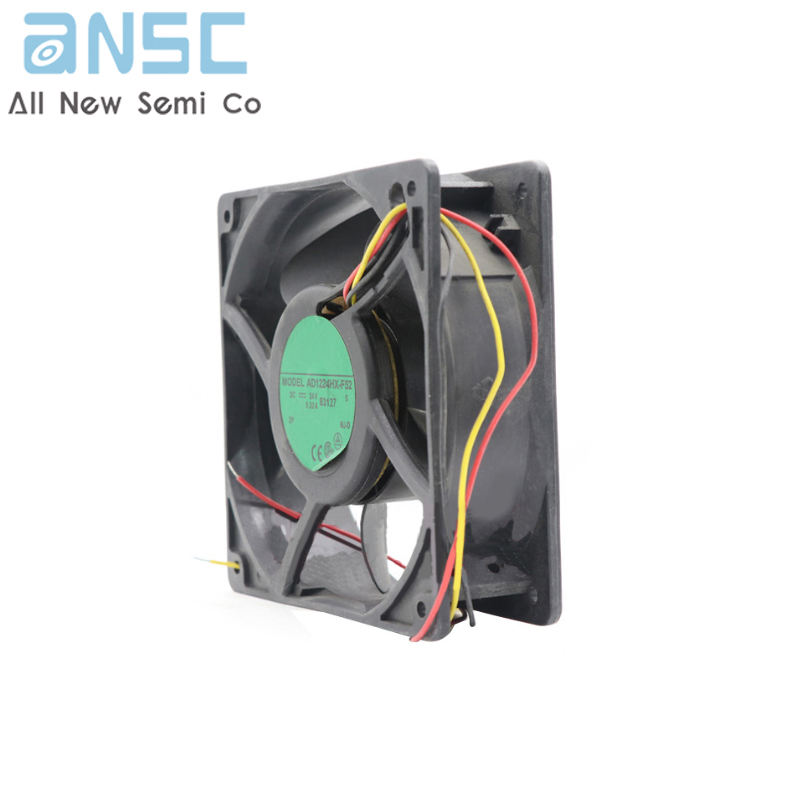

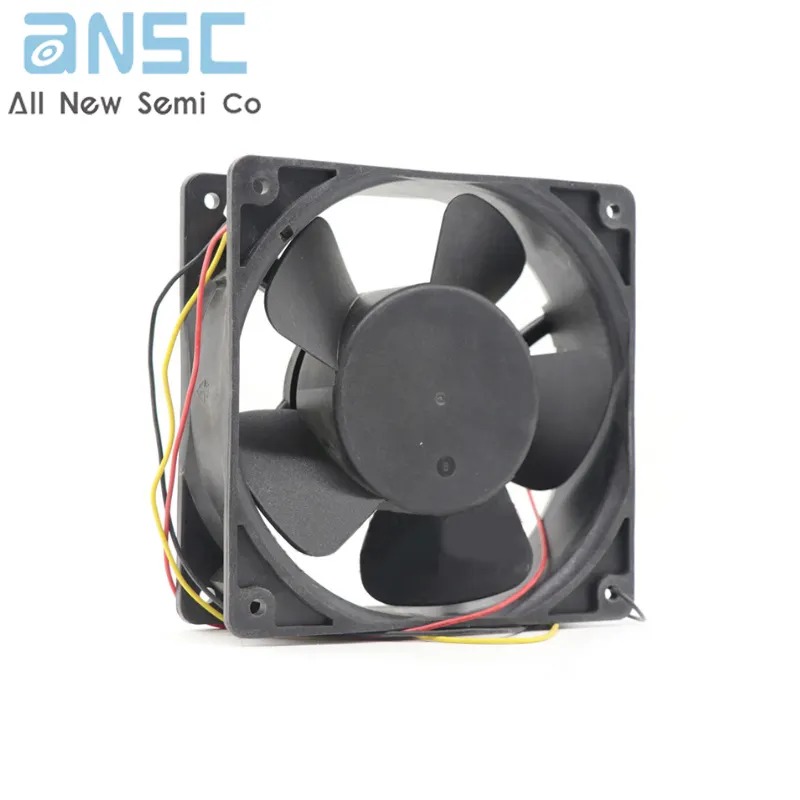

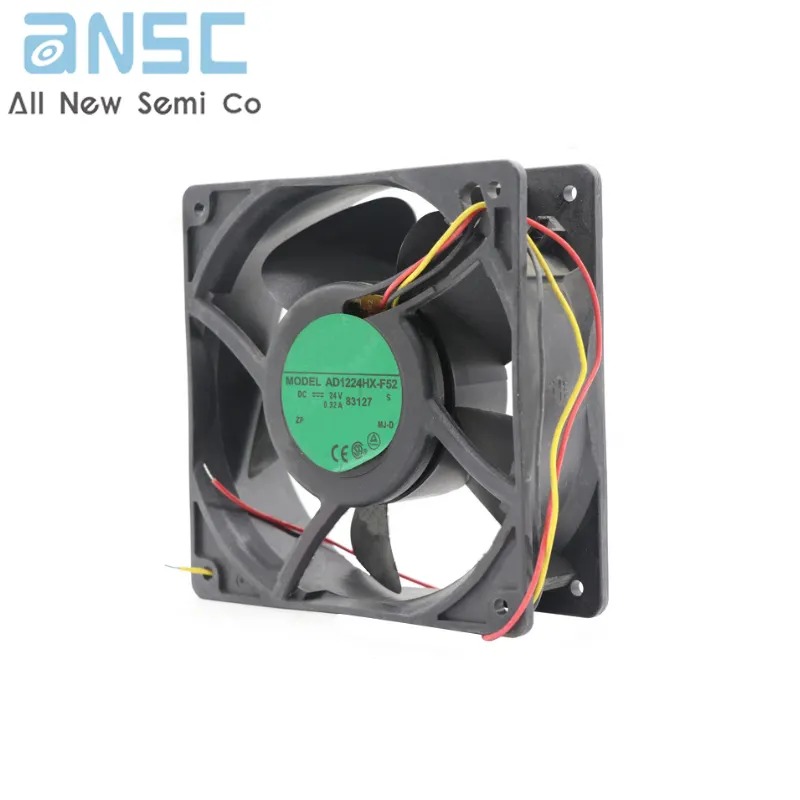

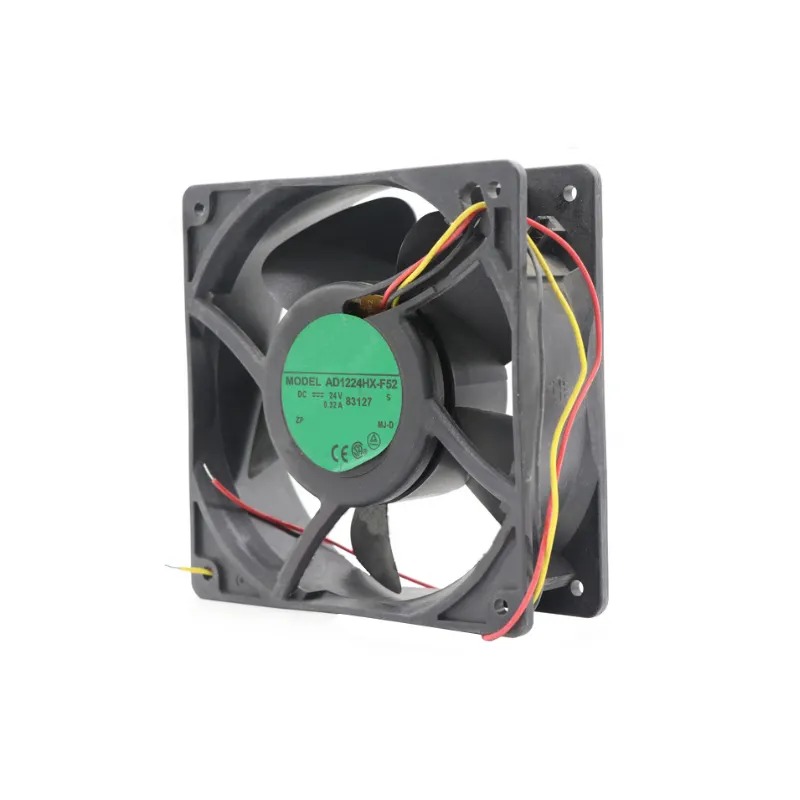

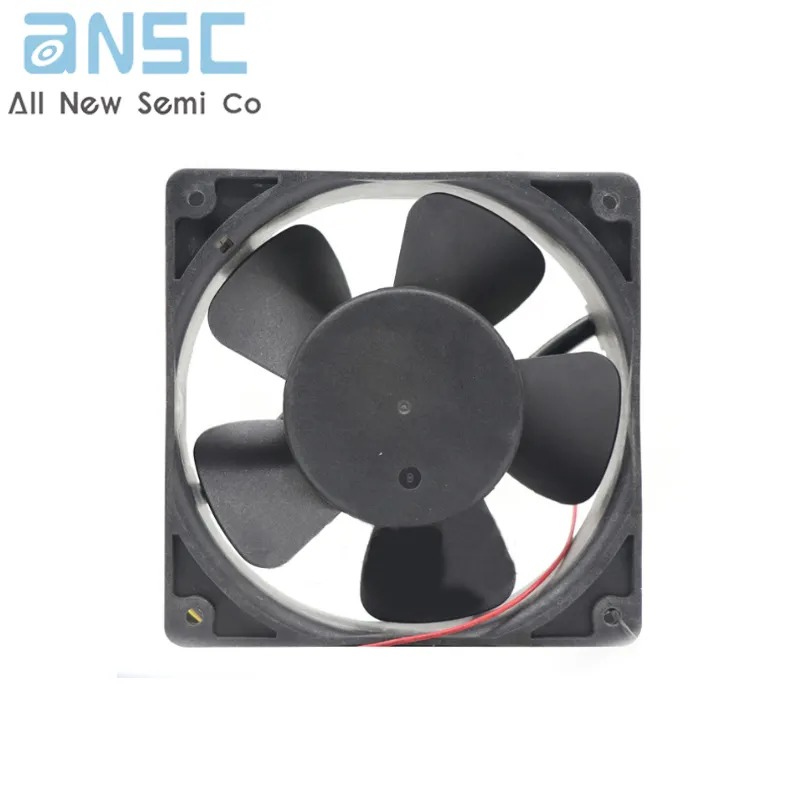

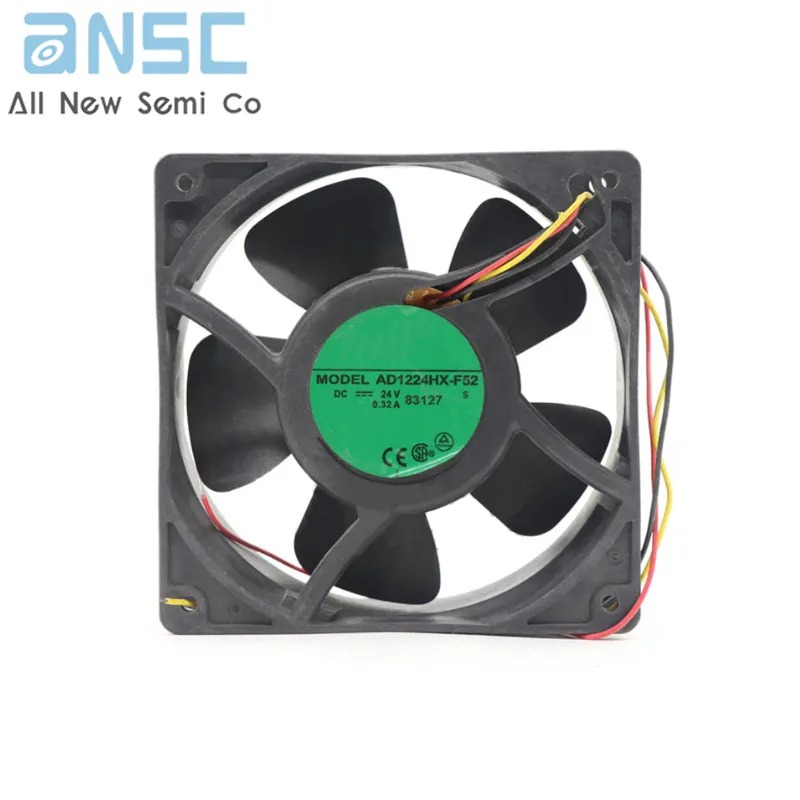

Actual image of the product
