Descriptions
Product No. : MTL4842
Product Type : HART interface modules
MTL4842 HART? INTERFACE MODULE
MTL systems interface : Links up to 16 loops via backplanes Receives multiplexer control signals via interface bus from MTL4841 and selects one channel for communication
Unit address : Switch selectable on top of module
Interface bus : Total length of interface bus between module 1 and module 16 must not exceed 4m
LED indicators Green : one provided for power, Amber: one to indicate unit is selected by MTL4841, Red: four to identify loop address
Power requirements : Powered from backplane
Power consumption : <0.1W
Weight : 0.30 Kg
Shipping Weight : 1.5 Kg

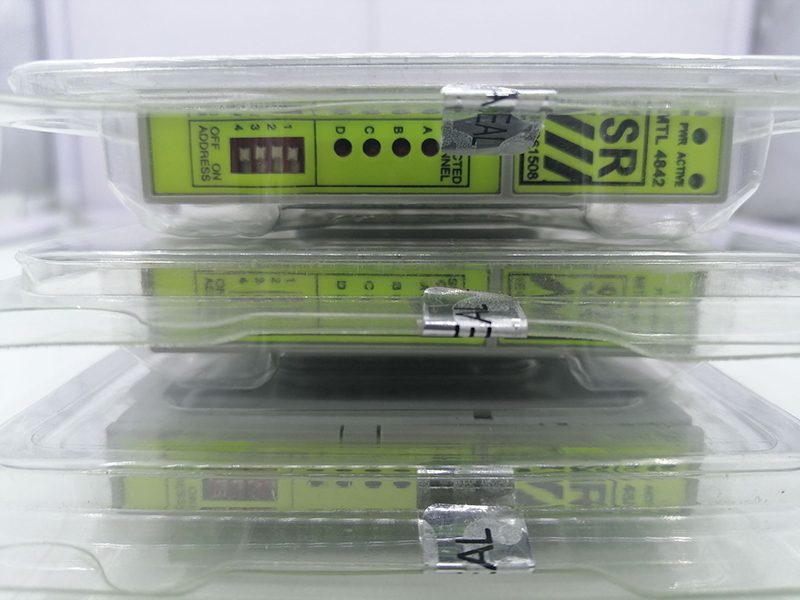

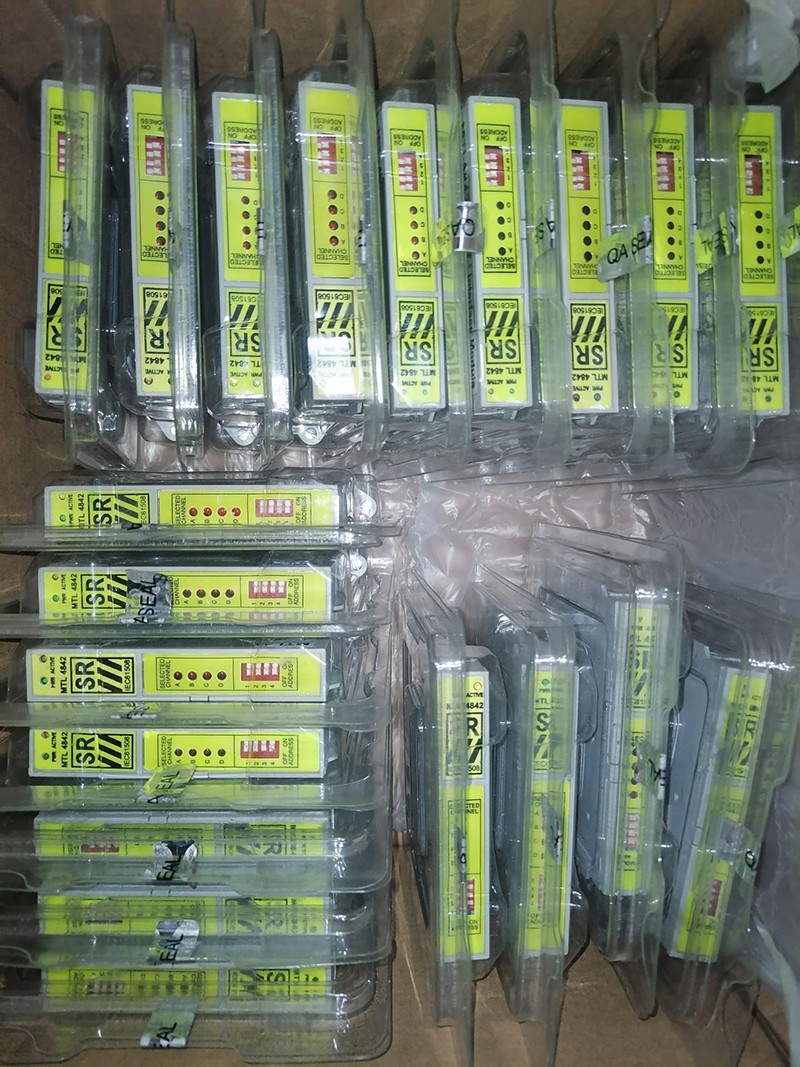

Actual product photos
