Product Descriptions
E72-2G4M05S1A series low-power wireless module, CC2630 is a dual core chip, ARM Cortex-M3 processor, used for processing application data; ARM Cortex-M0 is used for running protocol stacks. This module is a pure hardware module with no program at the factory, and the customer develops the software themselves. You can also contact our company to customize CC2620 and CC2650.
Specifications
| Attribute | Attribute value | |
| ANSM-Part# | ANSM-E72-2G4M05S1A | |
| Working frequency | 2402~2480 MHz | Default: 2.4GHz (24MHz oscillator) |
| Transmitting power | 5 dBm | About 3.2mW |
| Receiving sensitivity | 99 dBm | Air data rate: 250kbps |
| Air data rate | 1Mbps | Please refer to ic datasheet for IEEE802.15.4 |
| Test distance | 150m / 500m | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m,air data rate: 250kbps |
| IC | CC2630F128RGZR | - |
| FLASH | 128 KB | - |
| RAM | 28 KB | - |
| Core | M3 + M0 | - |

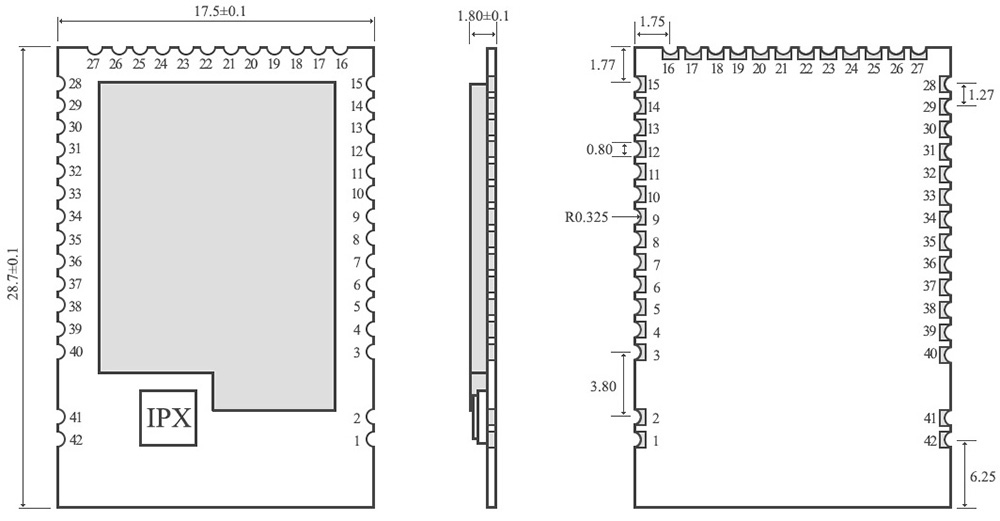

| Size | 17.5 * 28.7 mm | - |
| Antenna type | PCB / IPEX | - |
| Communication interface | I/O | - |
| Package | SMD | - |

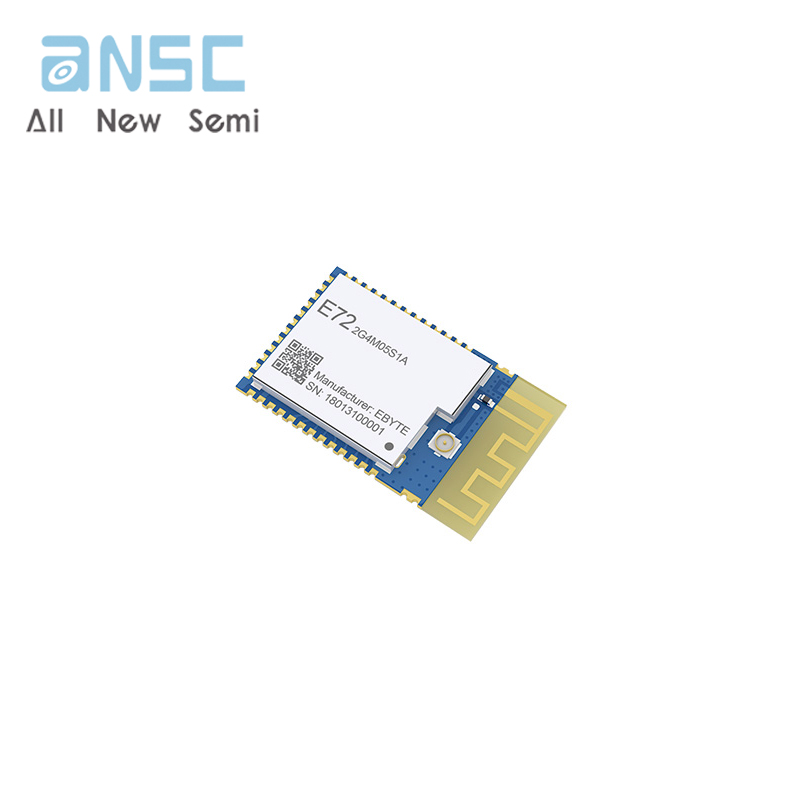

Actual product photos

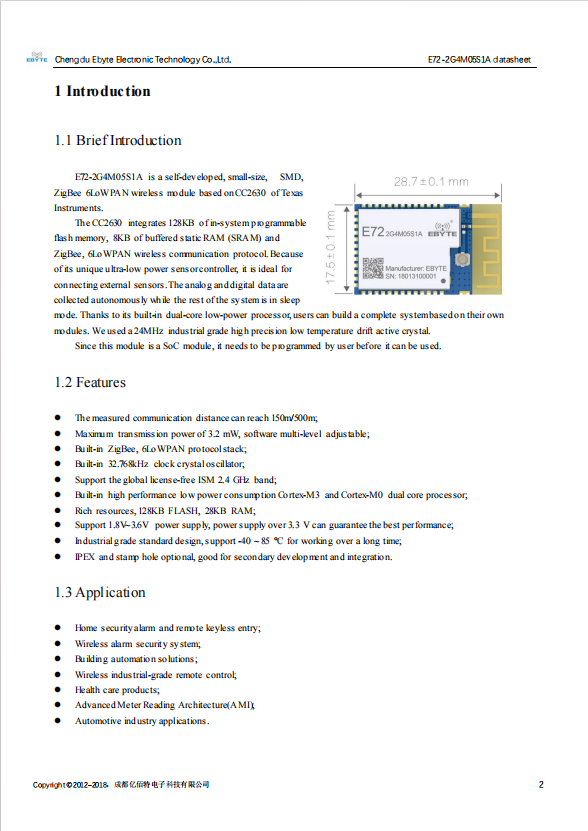

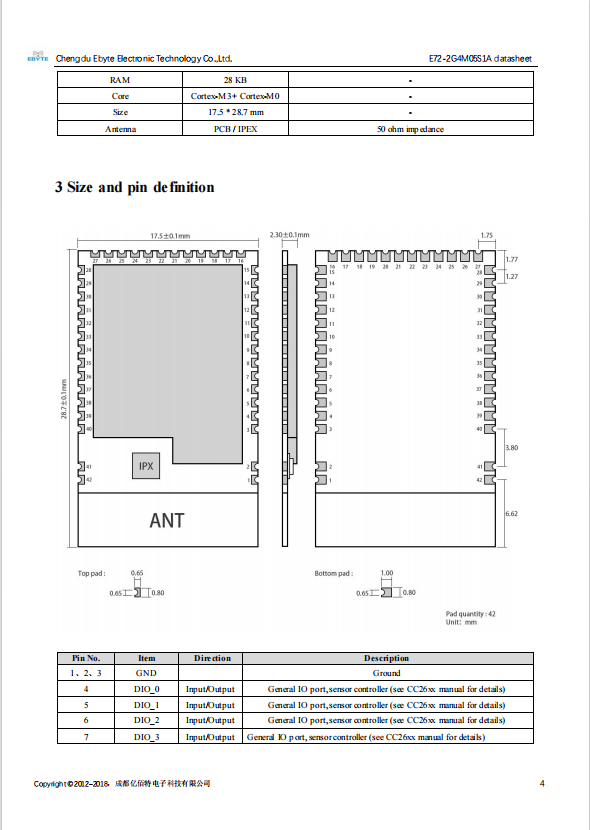

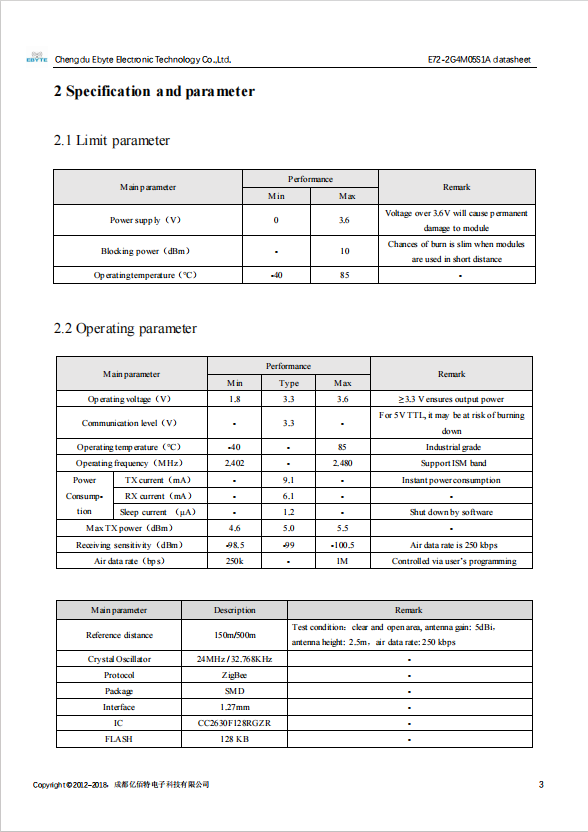

Product Data Book：
For more product information, please download the PDF
Payment&Transportation
Official Certificate&Certificate
Multiple product supply
Company office environment
Warehouse Real Shot
Standard packaging
