WiFi6+Bluetooth BLE5.3 combo module BL616 chip Ai-M62-32S matching antenna

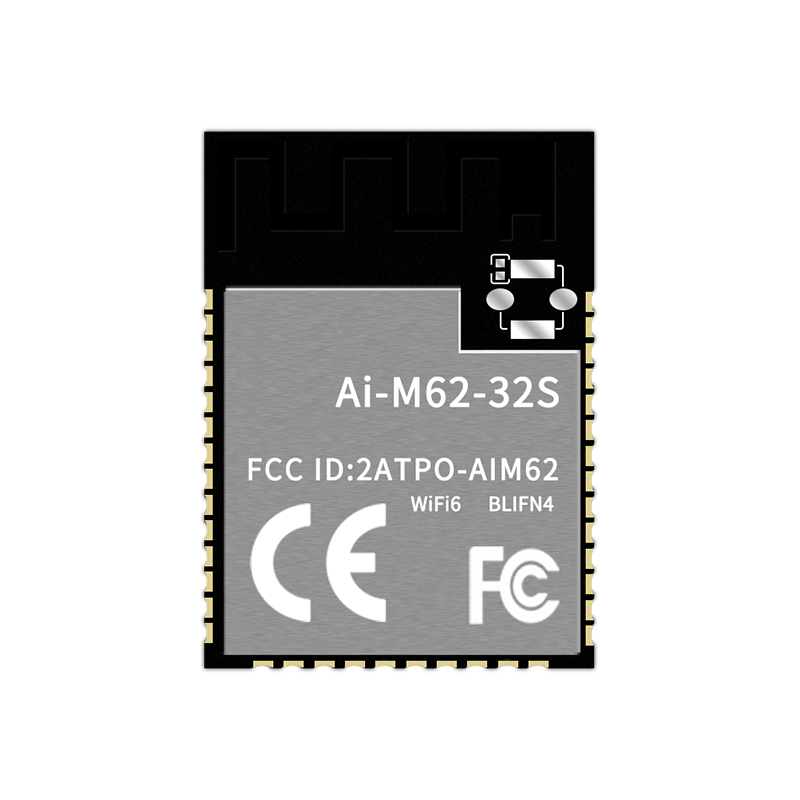

Ai-M62-32S

Model:Ai-M62-32S

Manufacturer:ANSC/OEM

Package:module

詳情

Product Functions


Ai-M62-32S is a Wi Fi 6+BLE5.3 module, which is equipped with BL616 chip as the core processor and supports Wi Fi 802.11b/g/n/ax protocol and BLE protocol, as well as Thread protocol. The BL616 system includes a low-power 32-bit RISC-VCPU with floating-point unit, DSP unit, cache, and memory, with a maximum clock frequency of 320MHz. The Ai-M62-325 module has rich peripheral interfaces, including Audio Codec、UsB2.0、SDU、SD/MMC(SDH)、SPI、UART、I2C、I2S、PWM、GPDAC、GPADC、ACOMP And GPIO, etc. The Ai-M62-12F module SecEng module supports AES/SHA/PKA/TRNG and other functions, as well as image encryption and signature activation, to meet various security application requirements in the Internet of Things field.


Product Specifications


模組型號
Module model
Ai-M62-32S
模組封裝
Module packaging
SMD-38

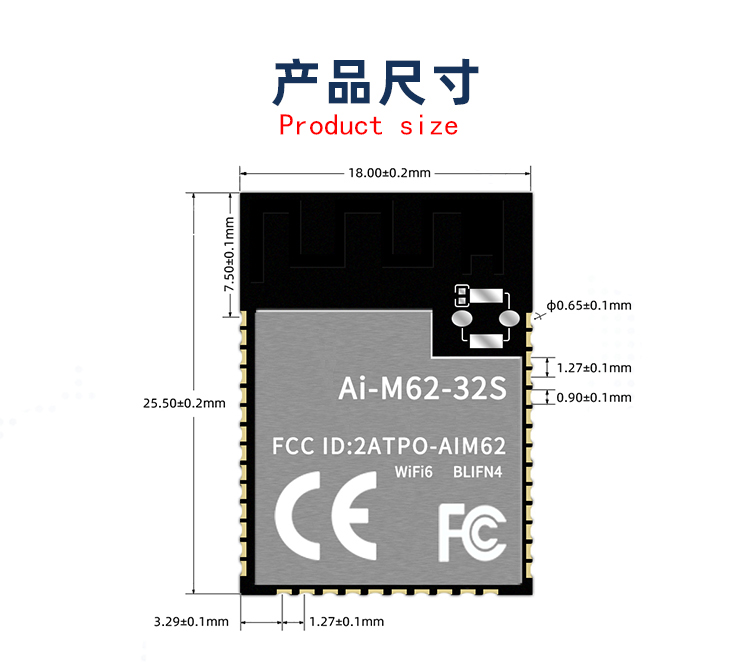

尺寸
Size(mm)
25.5*18.0*3.1(±0.2)mm
天線形式
Antenna form
板載天線/PEX座子
Onboard antenna/PEX mount
頻譜范圍
Spectrum range
2400-2483.5MHz
工作環境
Work environment
-40℃~85 ℃
存儲環境
Storage environment
-40℃~125°C,<90%RH
供電范圍
Power supply range
供電電壓 2.97V~3.6V,電流≥500mA
Supply voltage 2.97V~3.6V, current ≥ 500mA
支持接口
Support interfaces
Audio Codec、USB2.0、SDU、SD/MMC(SDH)、SPI.UART、I2C、I2S、PWM、GPDAC、GPADC、ACOMP and GPI0 etc
IO口數量
Number of IO ports
18個
18 of them
串口速率
Series Rate
默認115200 bps
Default 115200 bps
安全性
safety
WPS/WEP/WPA/WPA2/WPA3
FLASH默認 4MByte,支持?jǐn)U展
Default 4MByte, supports extension

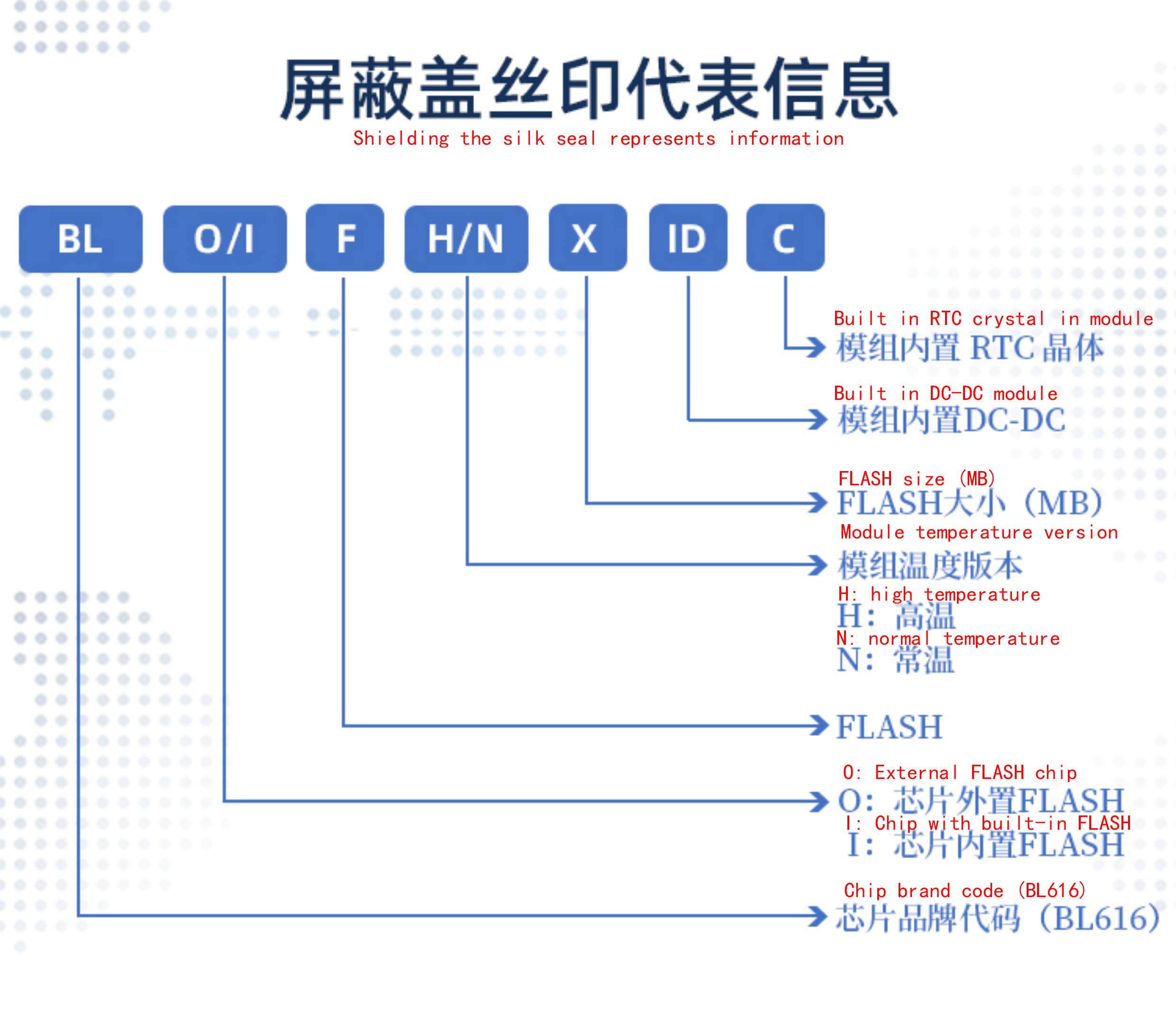

詳情-06

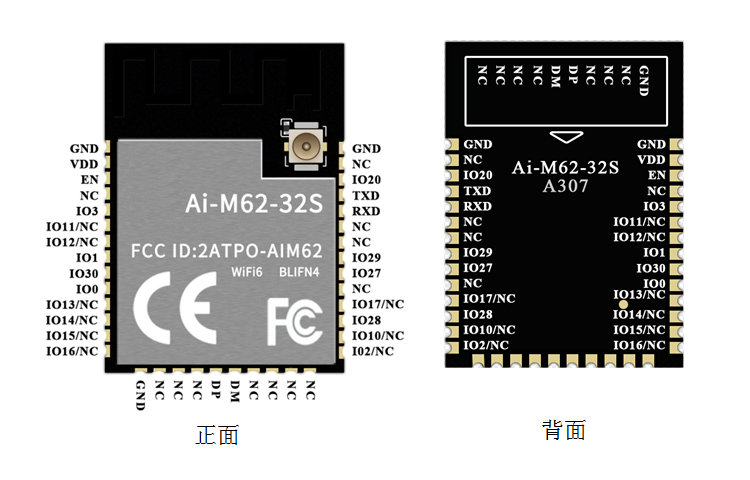

The Ai-M62-32S module has a total of 38 pins connected, as shown in the pin diagram. The pin function definition table is the interface definition.


腳序
Foot sequence
名稱
Name
功能說明
Function Description
1,15,38GND接地
Grounding
2VDD3.3V 供電;外部供電電源輸出電流建議在 500mA 以上
3.3V power supply; It is recommended that the output current of the external power supply be above 500mA
3EN默認作為芯片使能,高電平有效。
Default as chip enable, high level is effective.
4,16,17,18,21,22,23,24,29,32,33,37NCNC 為不可使用。
NC is not usable.
5IO3GPIO3/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/ADC_CH3/PWM0
6IO11/NC默認可用,該IO 口與模組內部 Flash 共用。如果定制外接 Flash 的模組,該 IO 則為不可使用狀態。如需使用,請聯系。
By default available, this IO port is shared with the internal Flash of the module. If a module with external Flash is customized, the IO will be in an unusable state. If you need to use it, please contact.
GPIO11/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/PWM0
7IO12/NC默認可用,該IO 口與模組內部 Flash 共用。如果定制外接 Flash 的模組,該 IO 則為不可使用狀態。如需使用,請聯系。
By default available, this IO port is shared with the internal Flash of the module. If a module with external Flash is customized, the IO will be in an unusable state. If you need to use it, please contact.
GPIO12/SPI_SS/I2S_BCLK/I2C_SCL/ADC_CH6/PWM0
8IO1GPIO1/SPI_SCLK/I2S_FS/I2C_SDA/ADC_CH8/PWM0
9IO30GPIO30/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWM0
10IO0GPIO0/SPI_SS/I2S_BCLK/I2C_SCL/ADC_CH9/PWM0
11IO13/NC默認可用,該IO 口與模組內部 Flash 共用。如果定制外接 Flash 的模組,該 IO 則為不可使用狀態。如需使用,請聯系。
By default available, this IO port is shared with the internal Flash of the module. If a module with external Flash is customized, the IO will be in an unusable state. If you need to use it, please contact.
GPIO13/SPI_SCLK/I2S_FS/I2C_SDA/ADC_CH5/PWM0
12IO14/NC默認可用,該IO 口與模組內部 Flash 共用。如果定制外接 Flash 的模組,該 IO 則為不可使用狀態。如需使用,請聯系
By default available, this IO port is shared with the internal Flash of the module. If a module with external Flash is customized, the IO will be in an unusable state. If you need to use it, please contact.
GPIO14/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/ADC_CH4/PWM0
13IO15/NC默認可用,該IO 口與模組內部 Flash 共用。如果定制外接 Flash 的模組,該 IO 則為不可使用狀態。如需使用,請聯系。
By default available, this IO port is shared with the internal Flash of the module. If a module with external Flash is customized, the IO will be in an unusable state. If you need to use it, please contact.
GPIO15/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/PWM0
14IO16/NC默認可用,該IO 口與模組內部 Flash 共用。如果定制外接 Flash 的模組,該 IO 則為不可使用狀態。如需使用,請聯系。
By default available, this IO port is shared with the internal Flash of the module. If a module with external Flash is customized, the IO will be in an unusable state. If you need to use it, please contact.
GPIO16/SPI_SS/I2S_BCLK/I2C_SCL/XTAL_32K_IN/PWM0
19DPUSB_DP
20DMUSB_DM
25IO2/NC默認NC,不可使用,如需使用請聯系。如果引出,
支持Bootstrap/GPIO2/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/ADC_CH2/PWM0
26IO10/NC默認可用,該IO 口與模組內部 Flash 共用。如果定制外接 Flash 的模組,該I0 則為不可使用狀態。如需使用,請聯系。
GPIO10/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/ADC_CH7/PWM0
27IO28GPIO28/SPI_SS/I2S_BCLK/I2C_SCL/ADC_CH11/PWM0
28IO17/NC默認可用,該I0 口與模組內部 32.768KHz 晶振輸出 PIN 腳共用。如果定制內部貼片 32.768KHz 晶振的模組,該 IO 則為 NC 狀態。
GPIO17/SPI_SCLK/I2S_FS/I2C_SDA/XTAL_32K_OUT/PWM0
30IO27GPIO27/SPI_MOSI/I2S_DO/I2S_RCLK_O/I2C_SDA/ADC_CH10/PWM0
31IO29GPIO29/SPI_SCLK/I2S_FS/I2C_SD/APWM0
34RXDRXD/GPIO22/SPI_MISO/I2S_DI/I2S_RCLK_O/I2C_SCL/PWM0
35TXDTXD/GPIO21/SPI_SCLK/I2S_FS/I2C_SDA/ADC_RCAL_VOUT/PWM0
36IO20GPIO20/SPI_SS/I2S_BCLK/I2C_SCL/ADC_CH0/PWM0
注:1、GPIO2 作為 Bootstrap,上電瞬間為高電平時,模組進入燒錄模式;上電瞬間為低電平時,模組正常啟動。
Note: 1. As a Bootstrap, when GPIO2 is powered on and reaches a high level, the module enters burning mode; When the power on moment is low, the module starts normally.

詳情-09

詳情-10


WiFi RF Performance Table


描述
Describe
典型值
Typical values
單位
Unit
頻譜范圍
Spectrum range
2400~2483.5MHzMHz
輸出功率
Output power
模式
Mode
最小值
Minimum value
典型值
Typical values
最大值
Maximum value
單位
Unit
11ax模式 HE40,PA 輸出功率-16-dBm
11ax模式 HE20,PA 輸出功率-17-dBm
11n模式 HT40,PA 輸出功率-19-dBm
11n 模式 HT20,PA 輸出功率-19-dBm
1lg模式下,PA 輸出功率-19-dBm
11b模式下,PA 輸出功率-22-dBm
接收靈敏度
Receiver sensitivity
模式
Mode
最小值
Minimum value
典型值
Typical values
最大值
Maximum value
單位
Unit
11b, 1 Mbps--98-dBm
11b, 11 Mbps--90-dBm
1lg,6 Mbps--93-dBm
11g,54 Mbps--76-dBm
11n,HT20 (MCS7)--73-dBm
11ax,HE20(MCS9)--70-dBm
11ax,HE40(MCS9)--67-dBm


BLE RF Performance Table


描述
Describe
典型值
Typical values
單位
Unit
頻譜范圍
Spectrum range
2400~2483.5MHzMHz
輸出功率
Output power
速率模式
Rate mode
最小值
Minimum value
典型值
Typical values
最大值
Maximum value
單位
Unit
1Mbps-1015dBm
2Mbps-1015dBm
接收靈敏度
Receiver sensitivity
速率模式
Rate mode
最小值
Minimum value
典型值
Typical values
最大值
Maximum value
單位
Unit
1Mbps 靈敏度@30.8%PER
1Mbps sensitivity @ 30.8% PER
--99-dBm
1Mbps 靈敏度@30.8%PER
1Mbps sensitivity @ 30.8% PER
--97-dBm


Power consumption meter


·The following power consumption data is based on a 3.3V power supply, an ambient temperature of 25 ° C, and measured using an internal voltage regulator.


·All measurements were completed at the antenna interface with a filter in place.


·All emission data is measured based on a 100% duty cycle in continuous emission mode.

模式
Mode
最小值
Minimum value
平均值
Average value
最大值
Maximum value
單位
Unit
發射802.11b,11Mbps,POUT=+22dBm-442-mA
發射802.1lg,54Mbps,POUT=+19dBm-296-mA
發射802.11n,MCS7,POUT=+19dBm-301-mA
發射802.1lax,MCS9,POUT =+17dBm-269-mA
接收(Receive)802.11b,包長(packet length)1024字節(bytes)-59-mA
接收(Receive)802.11g,包長(packet length)1024字節(bytes)-59-mA
接收(Receive)802.11n,包長(packet length)1024字節(bytes)-59-mA
接收(Receive)802.1lax,包長(packet length)1024字節(bytes)-59-mA
