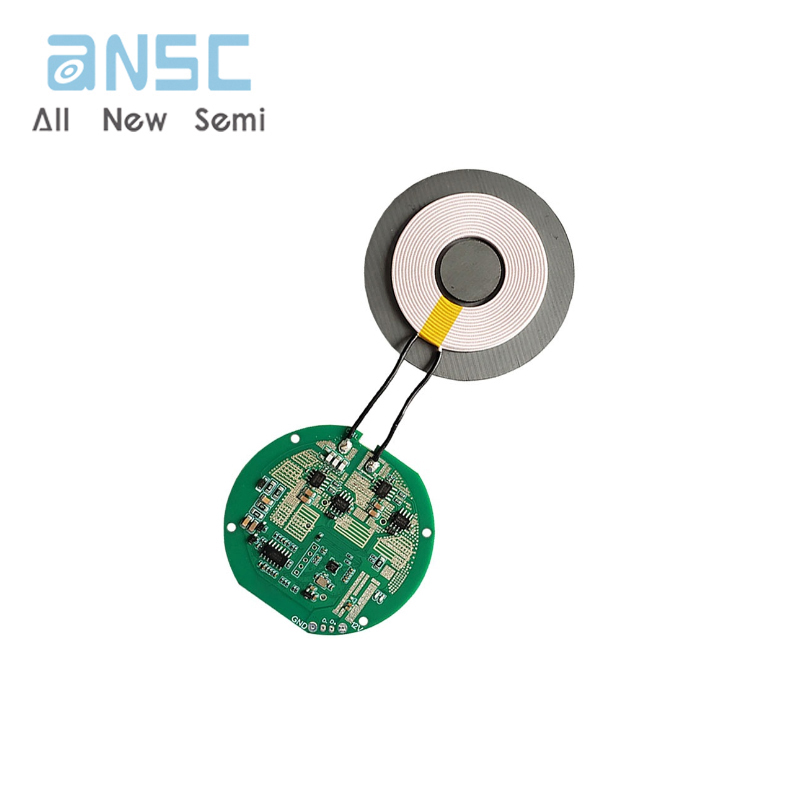

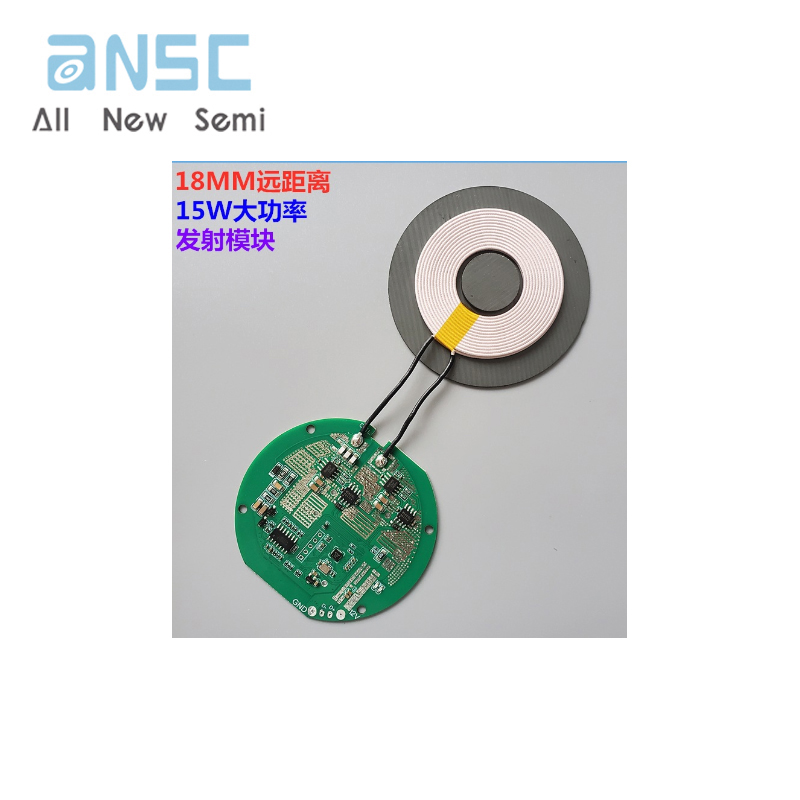

18mm long-distance 15W mobile wireless charger transmitter module, furniture, coffee table, bedside table DIY modification
Product Feature:
Compliant with WPC V1.2.3 wireless charging specifications
Product standard: QI standard
Support wireless charging for mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc
Optimized the impact of the internal magnetic ring of Apple 12-15 phones on long-distance wireless charging
Using high-performance main control chips, with high stability and strong compatibility
Input voltage/current: 12V/1.5A-2A

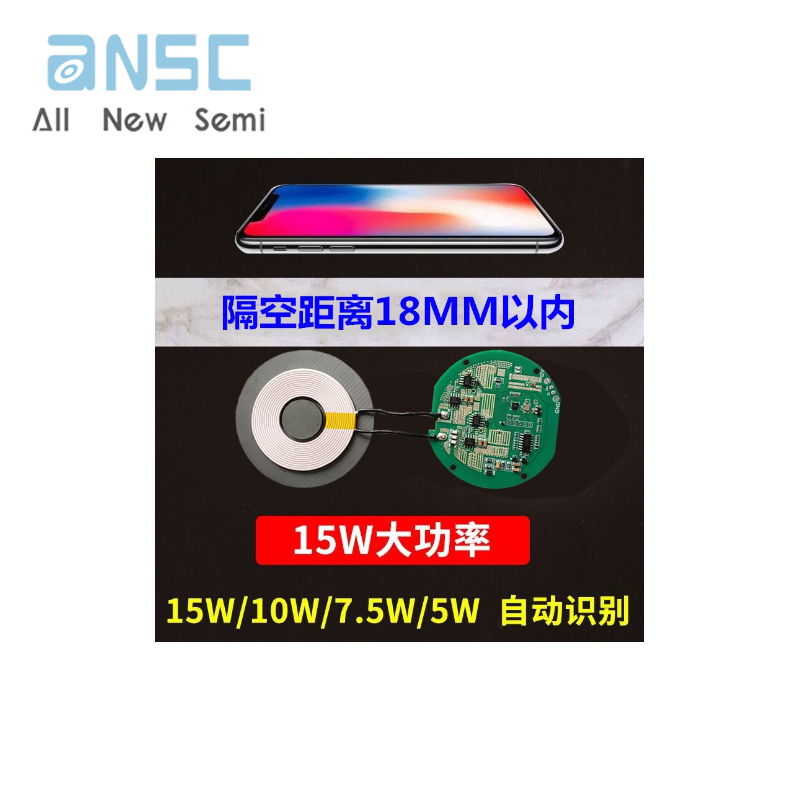

Output power: 15W/10W/7.5W/5W automatic recognition
Use a 12V/1.5-2A adapter to power the 2-core power cord
Welding 4-core USB cables requires the use of QC3.0 fast charging head
Power supply and charging efficiency: around 75%
Sensing distance: 5-18mm, if there is a shell, the thickness of the shell needs to be subtracted
Working frequency: 100-200Khz
Equipped with overcurrent, overvoltage, overheating and other protection functions
Support dual foreign object detection (FOD)
PCBA board size: length 70mm * width 65mm * thickness 2.7mm
Double layer coil magnetic separator size: diameter 70mm * thickness 3.5mm
