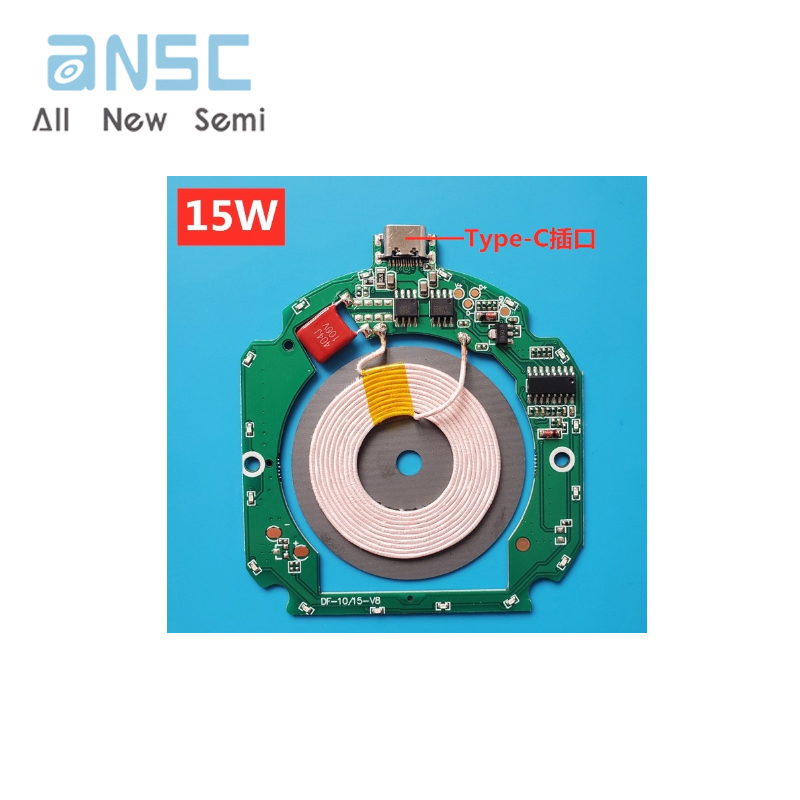

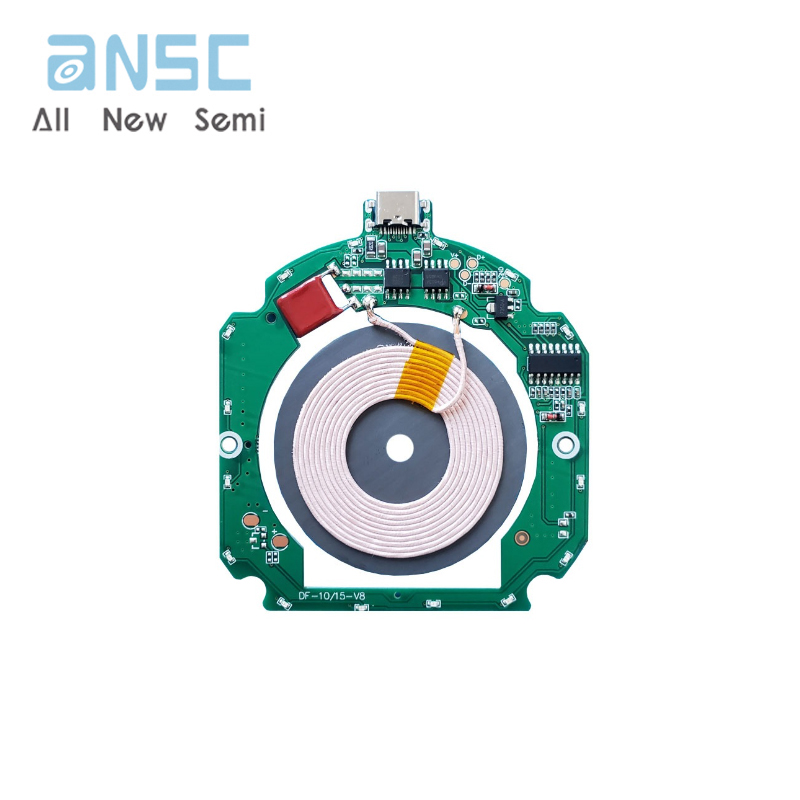

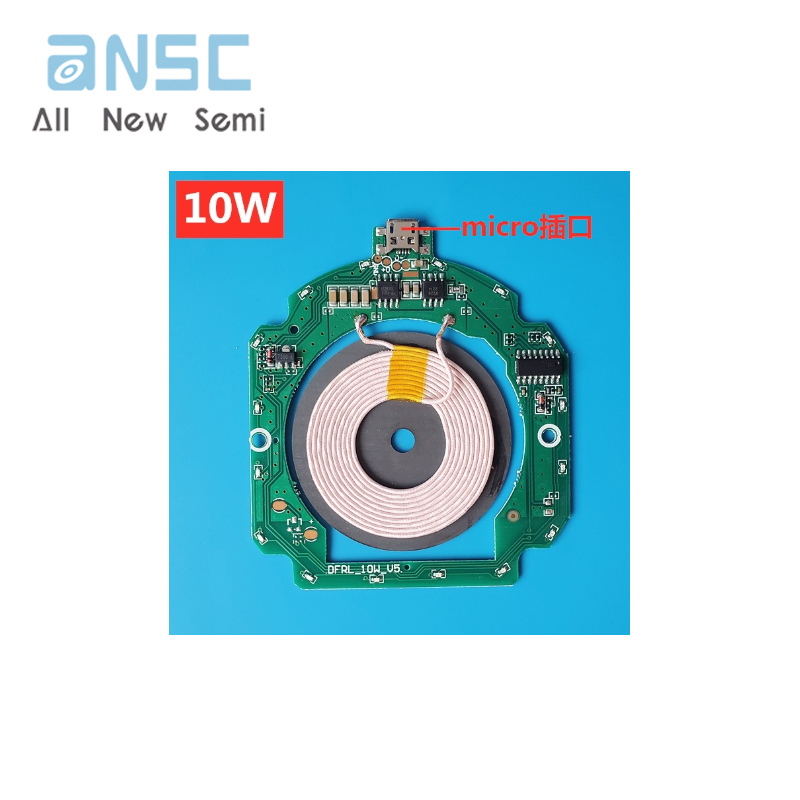

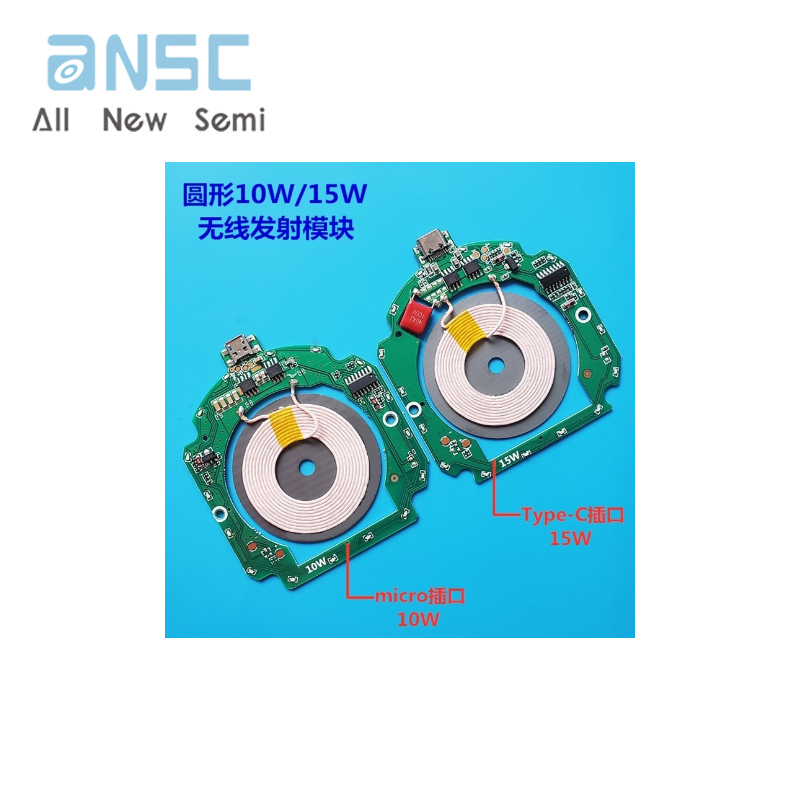

Mobile wireless charging module GY68-10W circular transmitter motherboard QI standard DIY modification wireless
Product Feature:
Compliant with WPC V1.2.3 wireless charging specifications
Support mainstream smartphones such as Huawei, Xiaomi, Samsung, Apple, etc
Input voltage/current: 9V2A/5V2A
Output power: 10W: 10W/7.5W/5W Automatic recognition
15W: 15W/10W/7.5W/5W automatic recognition
Plug in the charging cable and use the QC3.0 fast charging head for power supply
Use a 9V/2A or 5V/2A adapter to supply power for welding positive and negative wires
Charging efficiency: around 70-75%
Sensing distance: ≤ 8mm
Working frequency: 100-200Khz
Support dynamic energy balance
Equipped with overcurrent, overvoltage, overheating and other protection functions
Support Foreign Object Detection (FOD)

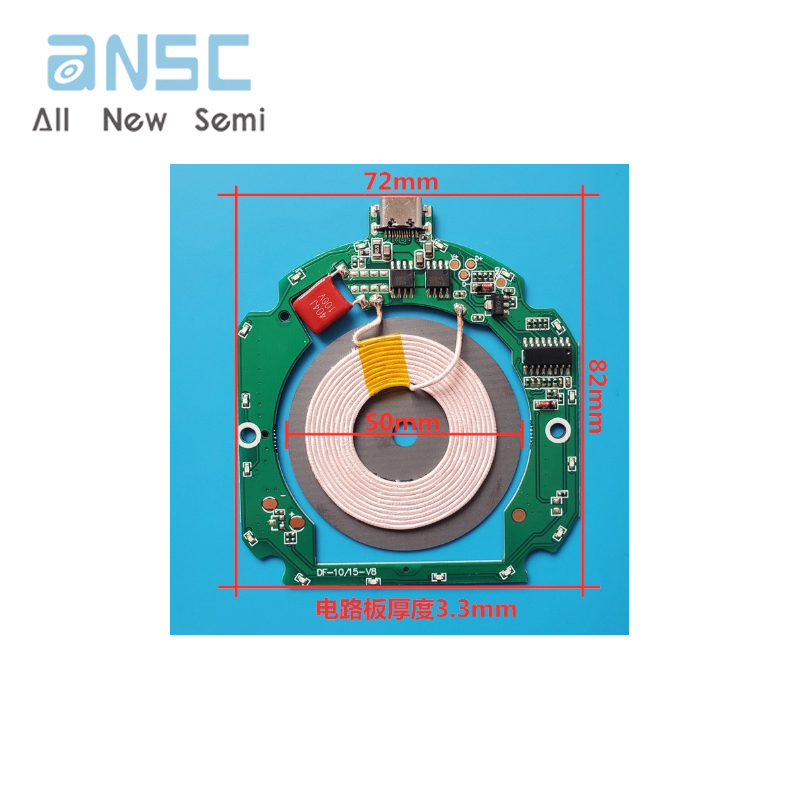

PCBA board size: 10W: 83mm*72mm*2.8mm
15W:82mm*72mm*3.3mm
