Product Descriptions

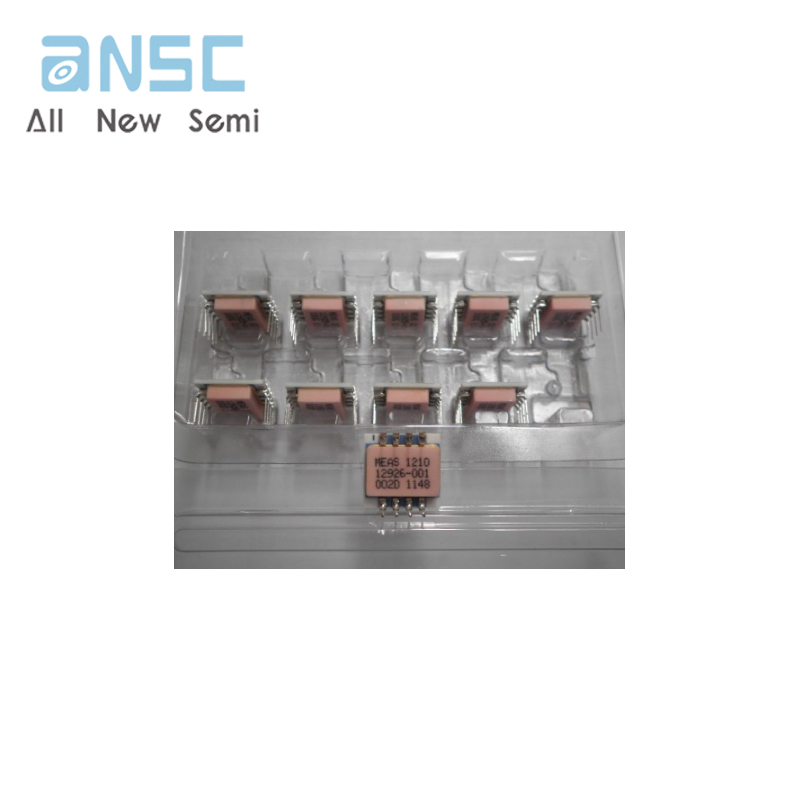

The 1210 is a temperature compensated, piezoresistive silicon pressure sensor packaged in a dual-in-line configuration. It is intended for cost
sensitive applications where excellent performance and long-term stability are required.
Integral temperature compensation is provided over a range of 0-50°C using laser-trimmed resistors. An additional laser-trimmed resistor is
included to normalize pressure sensitivity variations by programming the gain of an external differential amplifier. This provides sensitivity
interchangeability of ±1%. Gage, absolute, and differential pressure ranges from 0-2 psi to 0-100 psi are available. Multiple lead and tube
configurations are available for specific applications.
Please refer to the 1210 1 psi datasheet for low pressure applications. For voltage excitation, please refer to the Model 1220.
Product Features
? Dual-in-Line Package
? 0oC to 50oC Compensated Temperature Range
? ±0.1% Non-Linearity
? 1.0% Interchangeable Span (provided by gain set resistor)
? Solid State Reliability
Product Applications
? Medical Instruments
? Airspeed and Altitude Measurements
? Process Control
? Factory Automation
? Vacuum Measurement
? Handheld Calibrators
Product Specifications
? PC Board Mountable Pressure Sensor
? 0-100 mV Output
? Current Excitation
? Gage, Absolute, and Differential
? Temperature Compensated
Product Images
