Product Descriptions

XC4000 Series high-performance, high-capacity Field Programmable Gate Arrays (FPGAs) provide the benefits of custom CMOS VLSI, while avoiding the initial cost, long development cycle, and inherent risk of a conventional masked gate array.

The result of thirteen years of FPGA design experience and feedback from thousands of customers, these FPGAs combine architectural versatility, on-chip Select-RAM memory with edge-triggered and dual-port modes, increased speed, abundant

routing resources, and new, sophisticated software to achieve fully automated implementation of complex, high-density, high-performance designs.

Product Features

? System featured Field-Programmable Gate Arrays

- SelectRAMTM memory: on-chip ultra-fast RAM with

- synchronous write option

- dual-port RAM option

- Fully PCI compliant (speed grades -2 and faster)

- Abundant flip-flops

- Flexible function generators

- Dedicated high-speed carry logic

- Wide edge decoders on each edge

- Hierarchy of interconnect lines

- Internal 3-state bus capability

- Eight global low-skew clock or signal distribution networks

? System Performance beyond 80 MHz

? Flexible Array Architecture

? Low Power Segmented Routing Architecture

? Systems-Oriented Features

- IEEE 1149.1-compatible boundary scan logic support

- Individually programmable output slew rate

- Programmable input pull-up or pull-down resistors

- 12 mA sink current per XC4000E output

? Configured by Loading Binary File

- Unlimited re-programmability

? Read Back Capability

- Program verification

- Internal node observability

? Backward Compatible with XC4000 Devices

? Development System runs on most common computer platforms

- Interfaces to popular design environments

- Fully automatic mapping, placement and routing

- Interactive design editor for design optimization

Specifications

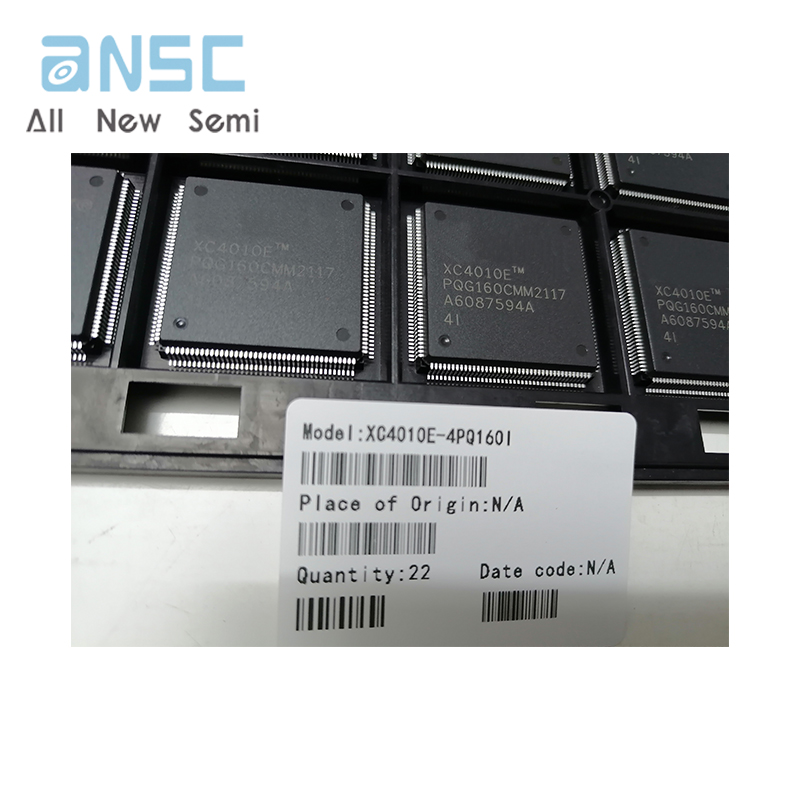

Actual product photos

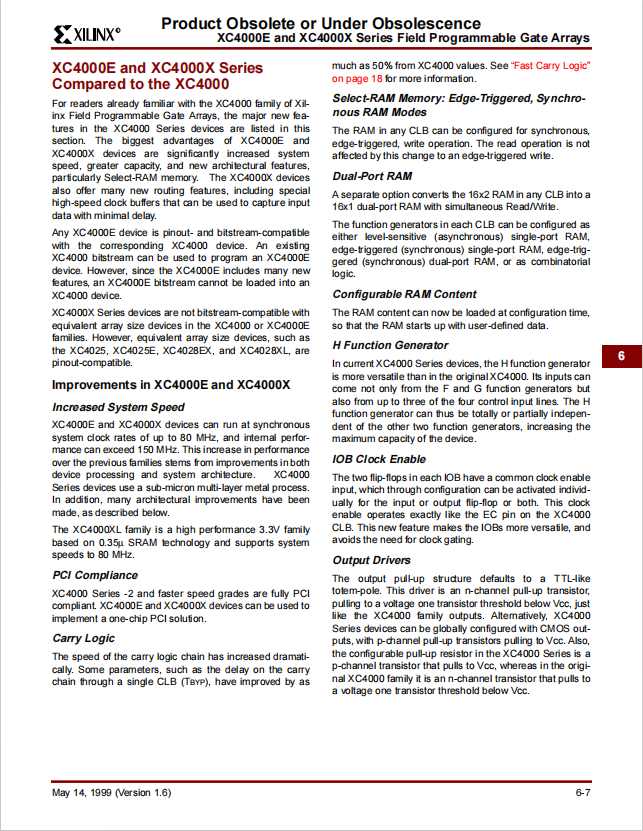

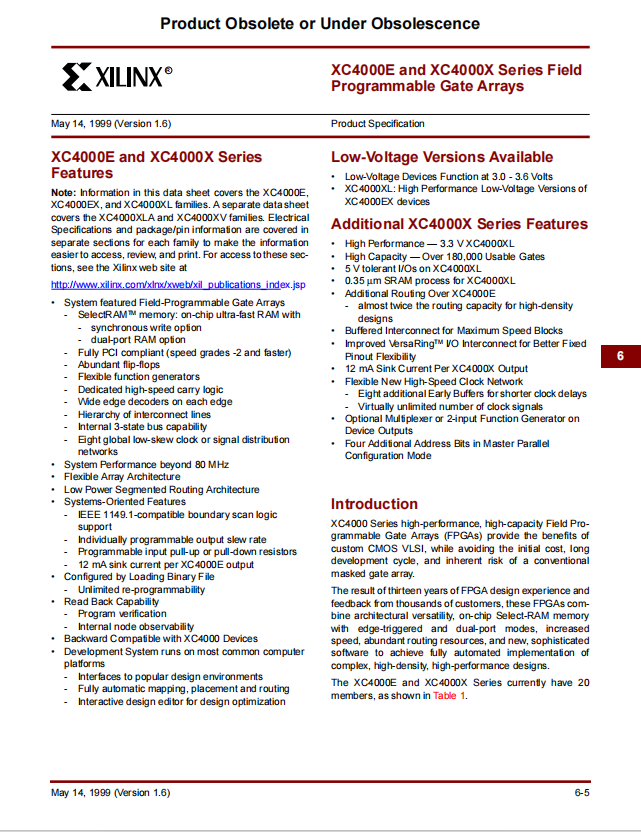

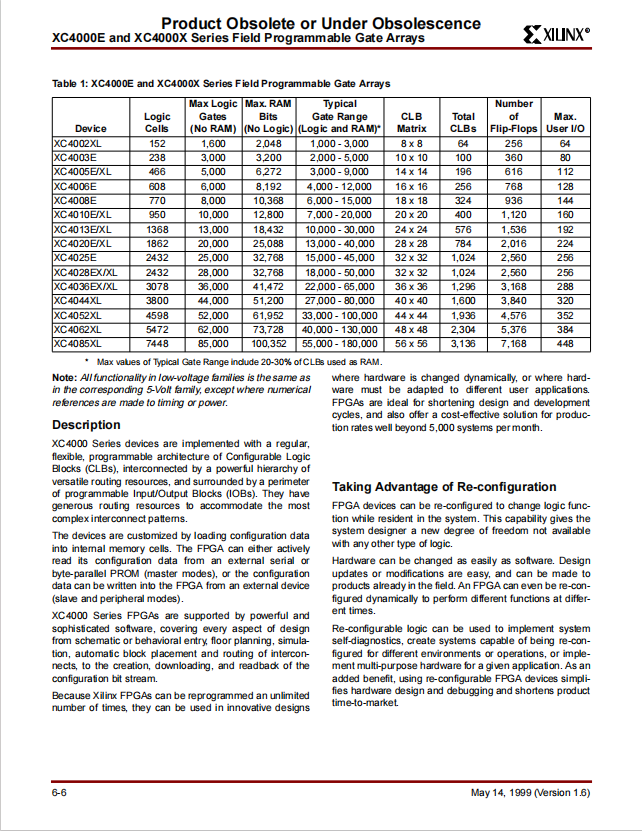

Product Data Book：

For more product information, please download the PDF

Payment&Transportation

Official Certificate&Certificate

Multiple product supply

Company office environment

Warehouse Real Shot

Standard packaging

We also provide ：
