Product Description

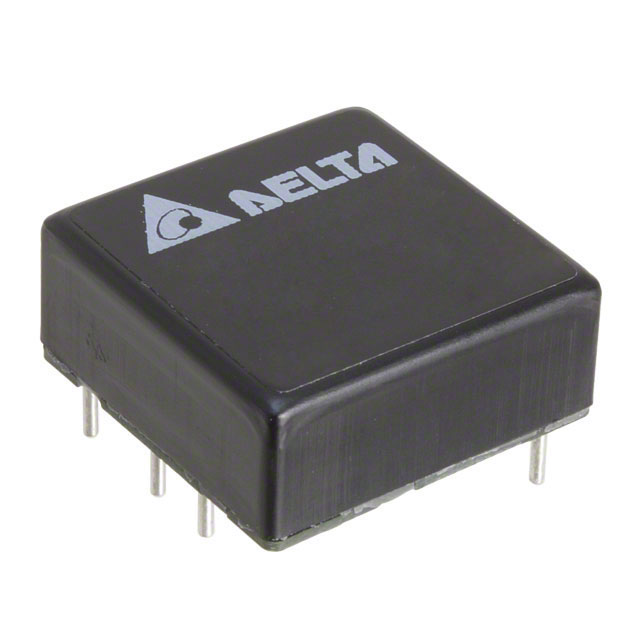

Delta Electronics S24DE150R6NDFA
TYPE | DESCRIPTION |
|---|---|
Category | Power Supplies - Board Mount DC DC Converters |
Mfr | Delta Electronics |
Series | S24DE (20W) |
Package | Tube |
Product Status | Active |
Type | Isolated Module |
Number of Outputs | 2 |
Voltage - Input (Min) | 9V |
Voltage - Input (Max) | 36V |
Voltage - Output 1 | 15V |
Voltage - Output 2 | -15V |
Voltage - Output 3 | - |
Current - Output (Max) | 670mA, 670mA |
Power (Watts) | 20 W |
Voltage - Isolation | 1.6 kV |
Applications | ITE (Commercial) |
Features | Remote On/Off, UVLO |
Operating Temperature | -40°C ~ 85°C |
Efficiency | 88% |
Mounting Type | Through Hole |
Package / Case | 6-DIP Module |
Size / Dimension | 1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm) |
Control Features | Enable, Active Low |
Base Product Number | S24DE |

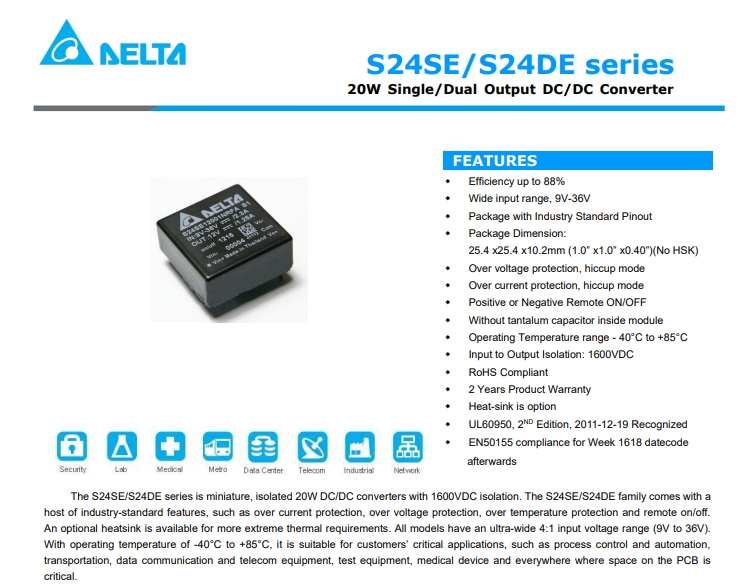

Product Data Book
Please download the more product specifications S24DE150R6NDFA
