Product Details
? Ultra wide 4:1 input range up to 160 VDC
? Certified for Railway applications (EN 50155)
? Operating temperature range -40°C to + 85°C
? Input under voltage lockout
? I/O isolation 1500 VDC
? Input filter to meet EN 55022 class A
? Remote On/Off
Product Description

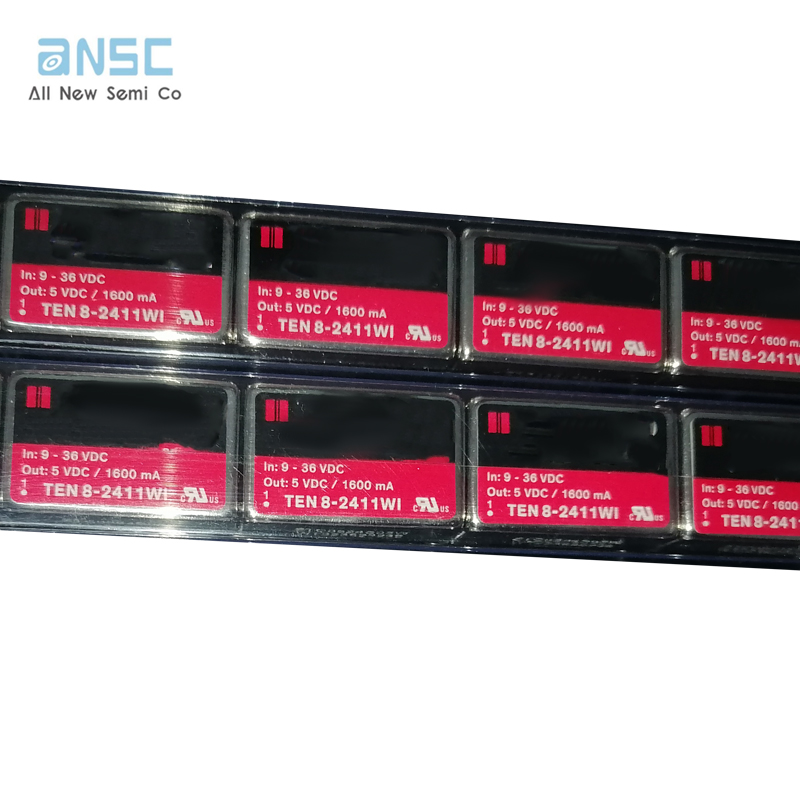

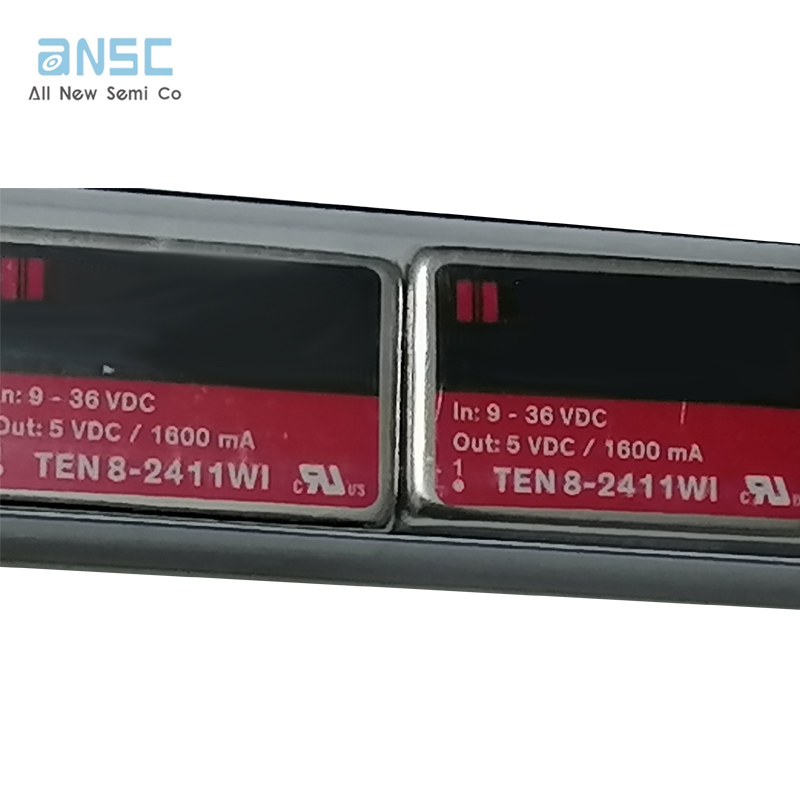

Traco Power TEN 8-2411WI
TYPE | DESCRIPTION |
|---|---|
Category | Power Supplies - Board Mount DC DC Converters |
Mfr | Traco Power |
Series | TEN 8WI (8W) |
Package | Tube |
Product Status | Active |
Type | Isolated Module |
Number of Outputs | 1 |
Voltage - Input (Min) | 9V |
Voltage - Input (Max) | 36V |
Voltage - Output 1 | 5V |
Voltage - Output 2 | - |
Voltage - Output 3 | - |
Voltage - Output 4 | - |
Current - Output (Max) | 1.6A |
Power (Watts) | 8 W |
Voltage - Isolation | 1.5 kV |
Applications | ITE (Commercial), Railway |
Features | Remote On/Off, OCP, OVP, SCP, UVLO |
Operating Temperature | -40°C ~ 85°C (With Derating) |
Efficiency | 87% |
Mounting Type | Through Hole |
Package / Case | 24-DIP Module, 9 Leads |

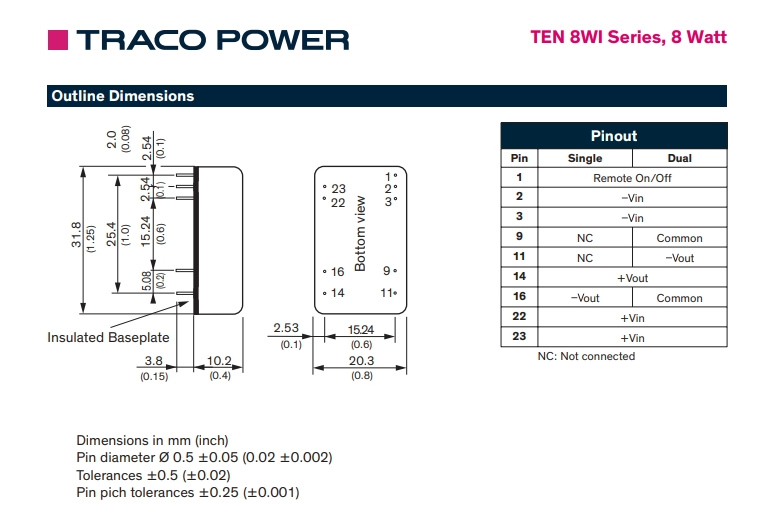

Size / Dimension | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) |
Supplier Device Package | - |
Base Product Number | TEN 8 |
Product Data Book
Please download the more product specifications TEN 8-2411WI
