Product Descriptions
The TPS65580 is a triple, advanced D-CAP2 TM modesynchronous buck converter. The TPS65580 enablessystem designers to complete the suite of variousend equipment's power bus regulators with a costeffective, low component count, and low standbycurrent solution. The main control loops of theTPS65580 uses the advanced D-CAP2TM modecontrol which provides a fast transient response withno external compensation components.TheTPS65580 is able to adapt to both low equivalentseries resistance (ESR) output capacitors such asPOSCAP or SP-CAP，and ultra-low ESR，ceramiccapacitors. The device provides convenient andefficient operation with input voltages from 4.5V to18V.
The TPS65580 is available in 4.4mm x 6.5mm 20 pinTSSOP(PWP) package, and is specified from -40Cto 85°C ambient temperature range.
Product Applications
? Point-of-Load Regulation in Low Power
- Systems for Wide Range of Applications
- Digital TV Power Supply
- Networking Home Terminal
- Digital Set Top Box (STB)
- DVD Player/Recorder
- Gaming Consoles and Other
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-TPS65580PWP |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | D-CAP2? |
| Package | Tube |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 0.764V |
| Voltage - Output (Max) | 7V |
| Current - Output | 1.5A, 2.5A |
| Frequency - Switching | 700kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| Base Product Number | TPS65580 |

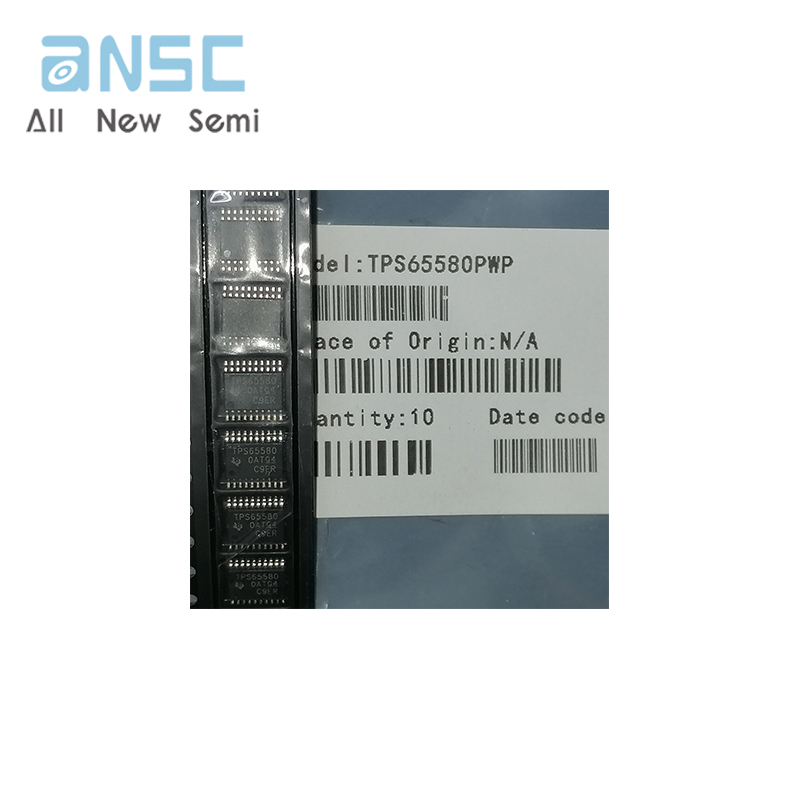

Actual product photos
Product Data Book：

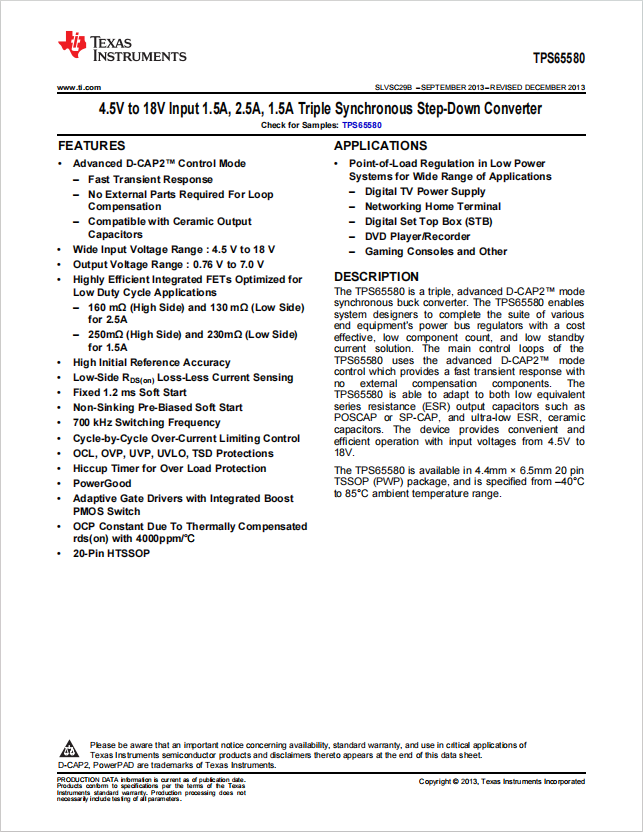

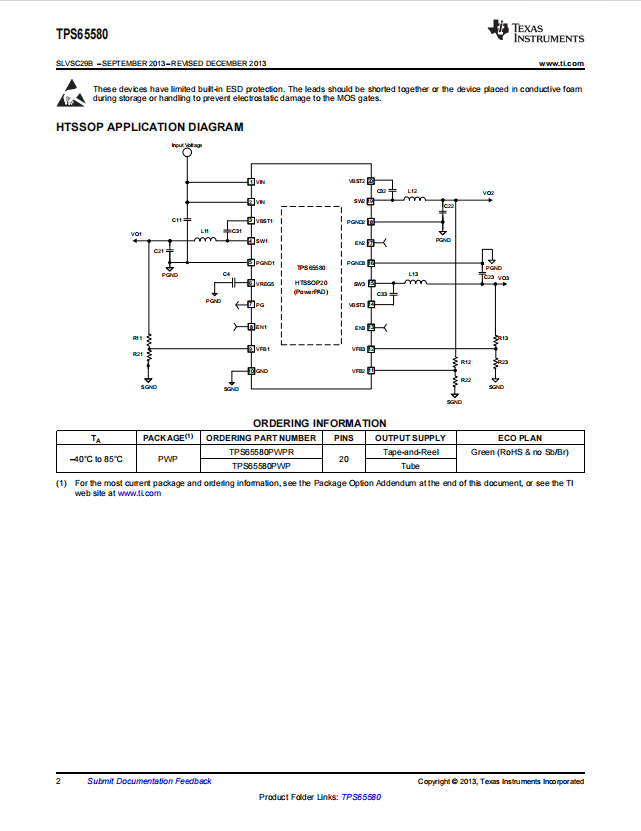

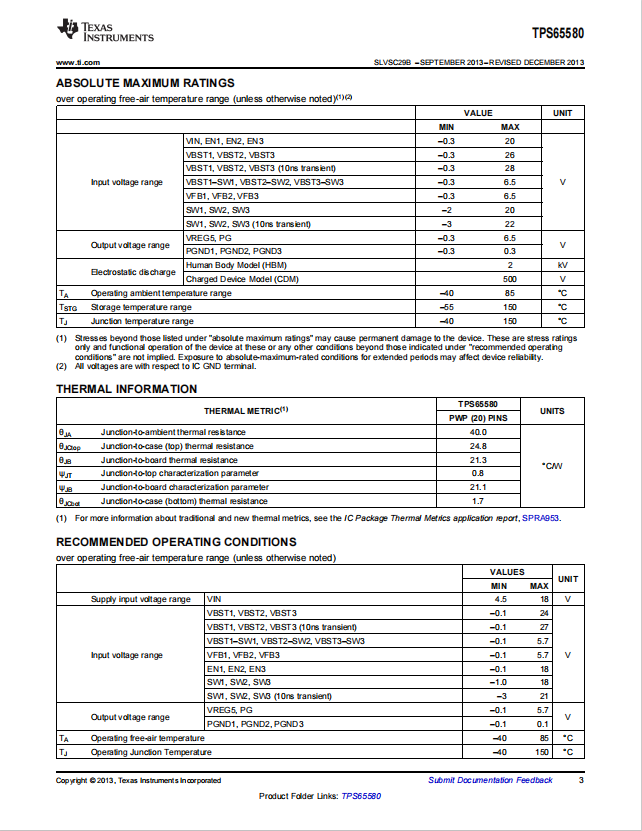

For more product information, please download the PDF
