Product Descriptions

The WM8974 is a low power, high quality mono CODEC designed for portable applications such as Digital Still Camera or Digital Voice Recorder.

The device integrates support for a differential or single ended mic, and includes drivers for speakers or headphone, and mono line output. External component requirements are reduced as no separate microphone or headphone amplifiers are required.

Advanced Sigma Delta Converters are used along with digital decimation and interpolation filters to give high quality audio at sample rates from 8 to 48ks/s. Additional digital filtering options are available in the ADC path, to cater for application filtering such as ‘wind noise reduction’, plus an advanced mixed signal ALC function with noise gate is provided. The digital audio interface supports A-law and -law companding.An on-chip PLL is provided to generate the required Master Clock from an external reference clock. The PLL clock can also be output if required elsewhere in the system.

The WM8974 operates at supply voltages from 2.5 to 3.6V, although the digital supplies can operate at voltages down to 1.71V to save power. The speaker and mono outputs use a separate supply of up to 5V which enables increased output power if required. Different sections of the chip can also be

powered down under software control by way of the selectable two or three wire control interface.

WM8974 is supplied in a very small 4x4mm QFN package, offering high levels of functionality in minimum board area, with high thermal performance.

Product Features

Mono CODEC:

? Audio sample rates:8, 11.025, 16, 22.05, 24, 32, 44.1, 48kHz

? DAC SNR 98dB, THD -84dB (‘A’-weighted @ 8 – 48ks/s)

? ADC SNR 94dB, THD -83dB (‘A’-weighted @ 8 – 48ks/s)

? On-chip Headphone/Speaker Driver with ‘cap-less’ connect

- 40mW output power into 16? / 3.3V SPKVDD

- BTL speaker drive 0.9W into 8? / 5V SPKVDD

? Additional MONO Line output

? Multiple analogue or ‘Aux’ inputs, plus analogue bypass path

Mic Preamps:

? Differential or single end Microphone Interface

- Programmable preamp gain

- Psuedo-differential inputs with common mode rejection

- Programmable ALC / Noise Gate in ADC path

? Low-noise bias supplied for electret microphones

OTHER FEATURES

? 5 band EQ (record or playback path)

? Digital Playback Limiter

? Programmable ADC High-Pass Filter (wind noise reduction)

? Programmable ADC Notch Filter

? On-chip PLL

? Low power, low voltage

- 2.5V to 3.6V (digital: 1.71V to 3.6V)

- power consumption <10mA all-on 48ks/s mode

? 4x4x0.9mm 24 lead QFN package

Product Applications

? Digital Still Camera Audio CODEC

? Wireless VoIP and other communication handsets / headsets

? Portable audio recorder

? General Purpose low power audio CODEC

Specifications

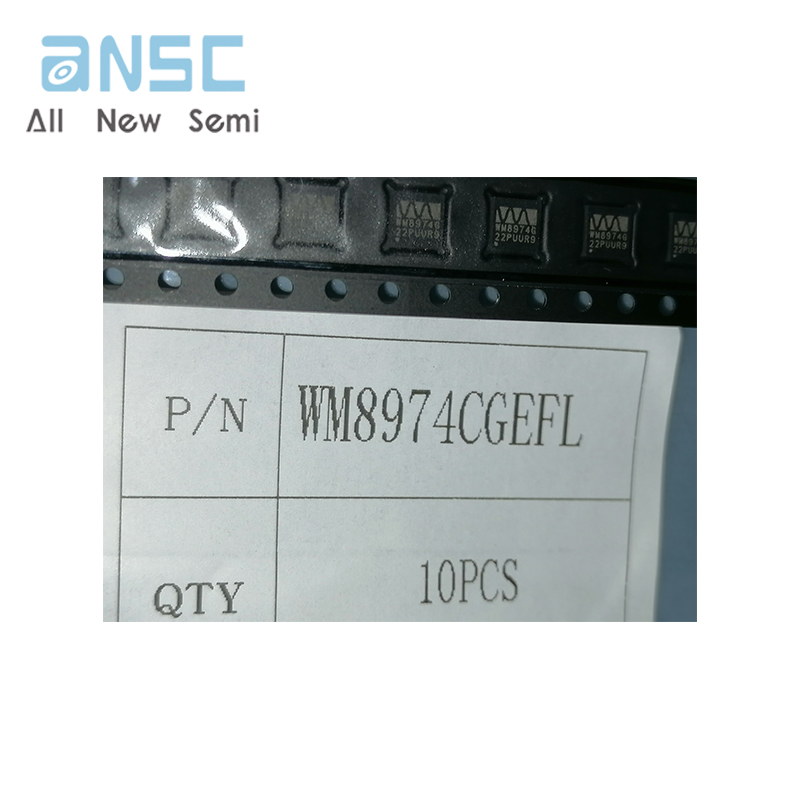

Actual product photos

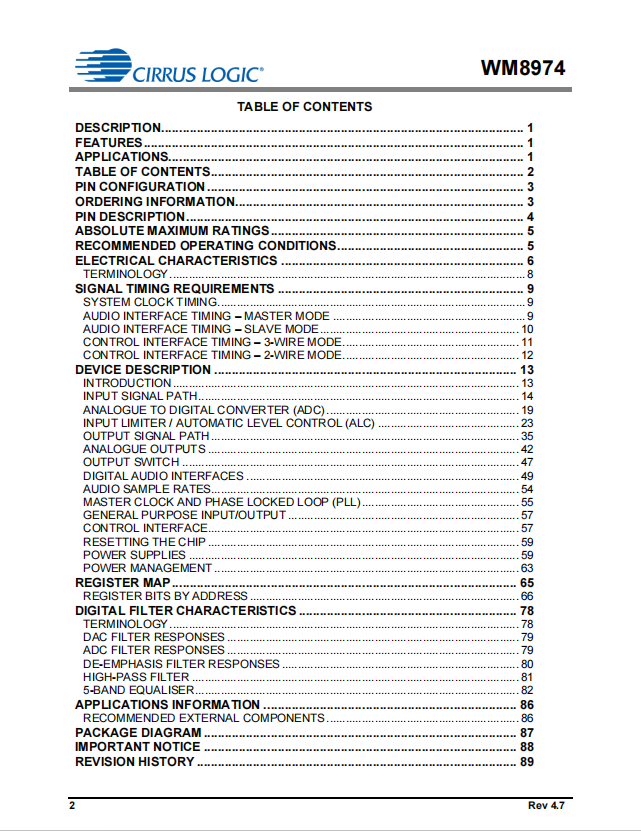

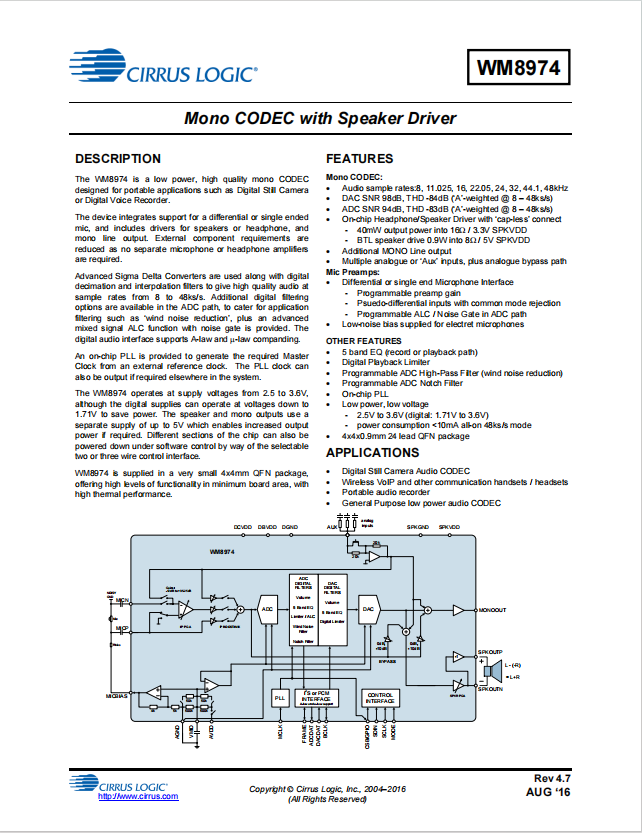

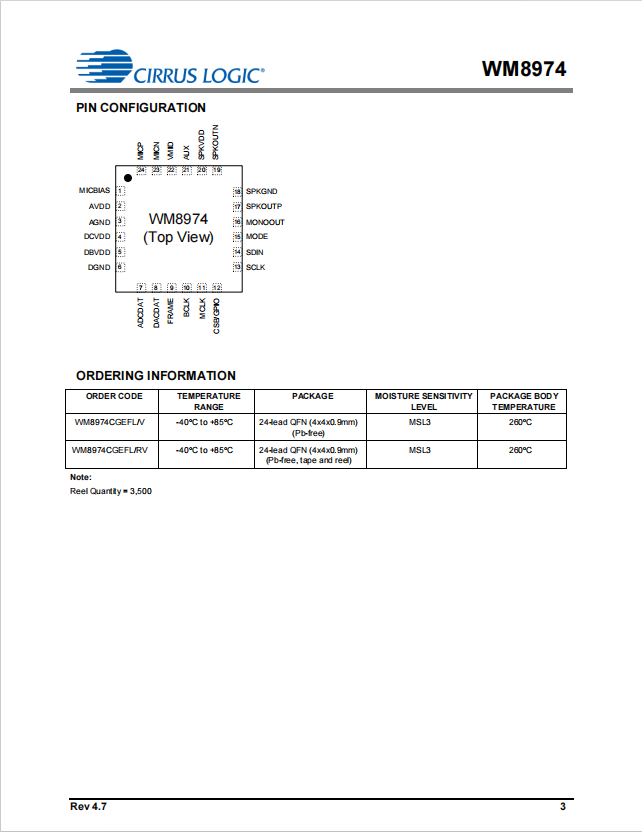

Product Data Book：

For more product information, please download the PDF
