Professional supply S29GL01GP11TFI010 3.0 Volt-only Page Mode Flash Memory featuring 90 nm MirrorBit Process Technology

S29GL01GP11TFI010

Model:S29GL01GP11TFI010

Manufacturer:SPANSION

Package:TSOP

詳情

Product Descriptions


The Cypress S29GL01G/512/256/128P are Mirrorbit? Flash products fabricated on 90 nm process technology. These devices offer a fast page access time of 25 ns with a corresponding random access time as fast as 90 ns. They feature a Write Buffer that allows a maximum of 32 words/64 bytes to be programmed in one operation, resulting in faster effective programming time than standard programming algorithms. This makes these devices ideal for today’s embedded applications that require higher density, better performance and lower power consumption.


Product Distinctive Characteristics


? Single 3V read/program/erase (2.7-3.6 V)

? Enhanced VersatileI/O? control

– All input levels (address, control, and DQ input levels) and outputs are determined by voltage on VIO input. VIO range is 1.65 to VCC

? 90 nm MirrorBit process technology

? 8-word/16-byte page read buffer

? 32-word/64-byte write buffer reduces overall programming time for multiple-word updates

? Secured Silicon Sector region

– 128-word/256-byte sector for permanent, secure identification through an 8-word/16-byte random Electronic Serial Number

– Can be programmed and locked at the factory or by the customer

? Uniform 64 Kword/128 Kbyte Sector Architecture

– S29GL01GP: One thousand twenty-four sectors

– S29GL512P: Five hundred twelve sectors

– S29GL256P: Two hundred fifty-six sectors

– S29GL128P: One hundred twenty-eight sectors

? 100,000 erase cycles per sector typical

? 20-year data retention typical

? Offered Packages

– 56-pin TSOP

– 64-ball Fortified BGA

? Suspend and Resume commands for Program and Erase operations

? Write operation status bits indicate program and erase operation completion

? Unlock Bypass Program command to reduce programming time

? Support for CFI (Common Flash Interface)

? Persistent and Password methods of Advanced Sector Protection

? WP#/ACC input

– Accelerates programming time (when VHH is applied) for greater throughput during system production

– Protects first or last sector regardless of sector protection settings

? Hardware reset input (RESET#) resets device

? Ready/Busy# output (RY/BY#) detects program or erase cycle completion


Specifications


AttributeAttribute value
ANSM-Part#ANSM-S29GL01GP11TFI010
ECCN (US)3A991b.1.a.
Part StatusObsolete
HTS8542.32.00.71
AutomotiveNo
PPAPNo
Cell TypeNOR
Chip Density (bit)1G
ArchitectureSectored
Boot BlockNo
Block OrganizationSymmetrical
Address Bus Width (bit)27/26
Sector Size128Kbyte x 1024
Page Size8Words/16byte
Number of Bits/Word (bit)45154
Number of Words128M/64M
ProgrammabilityYes
Timing TypeAsynchronous
Max. Access Time (ns)110
Maximum Erase Time (S)2048/Chip
Maximum Page Access Time (ns)25
Maximum Programming Time (ms)984000(Typ)/Chip
OE Access Time (ns)25
Process Technology90nm, MirrorBit
Interface TypeParallel
Minimum Operating Supply Voltage (V)2.7
Typical Operating Supply Voltage (V)3.3|3
Maximum Operating Supply Voltage (V)3.6
Programming Voltage (V)11.5 to 12.5|2.7 to 3.6
Operating Current (mA)110
Page Read Current (mA)20
Program Current (mA)90
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)85
Supplier Temperature GradeIndustrial
Command CompatibleYes
ECC SupportNo
Support of Page ModeYes
Minimum Endurance (Cycles)100000(Typ)
PackagingTray
MountingSurface Mount
Package Height1
Package Width18.4
Package Length14
PCB changed56
Standard Package NameSO
Supplier PackageTSOP
Pin Count56
Lead ShapeGull-wing




Actual product photos


S29GL01GP11TFI010

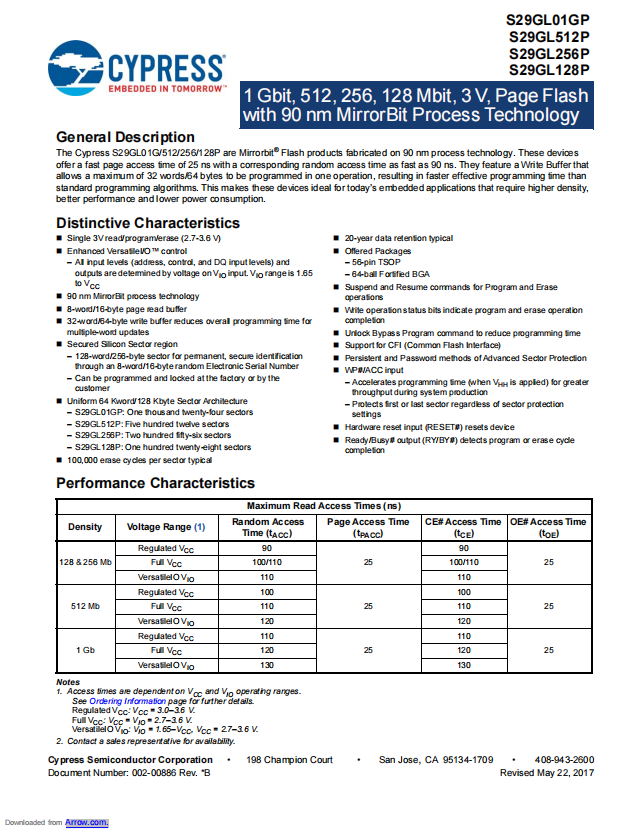

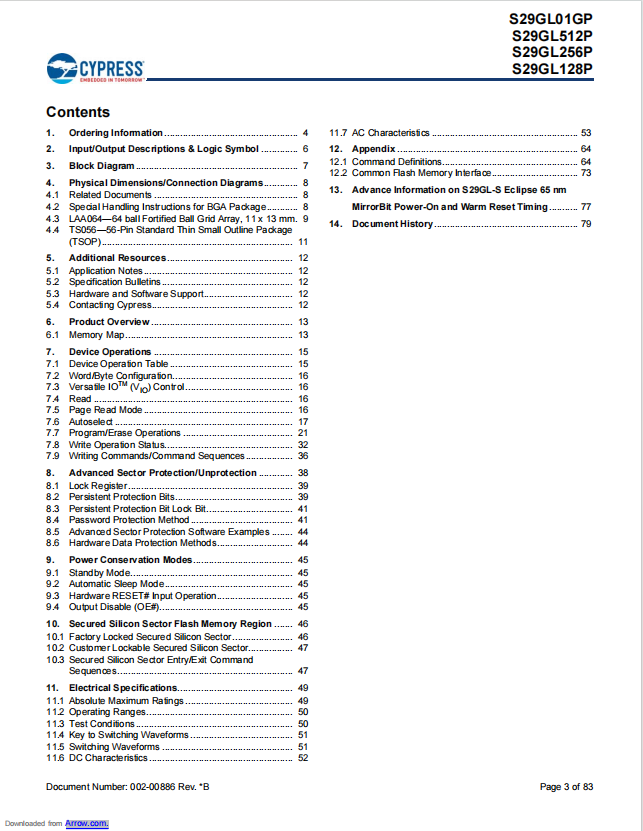

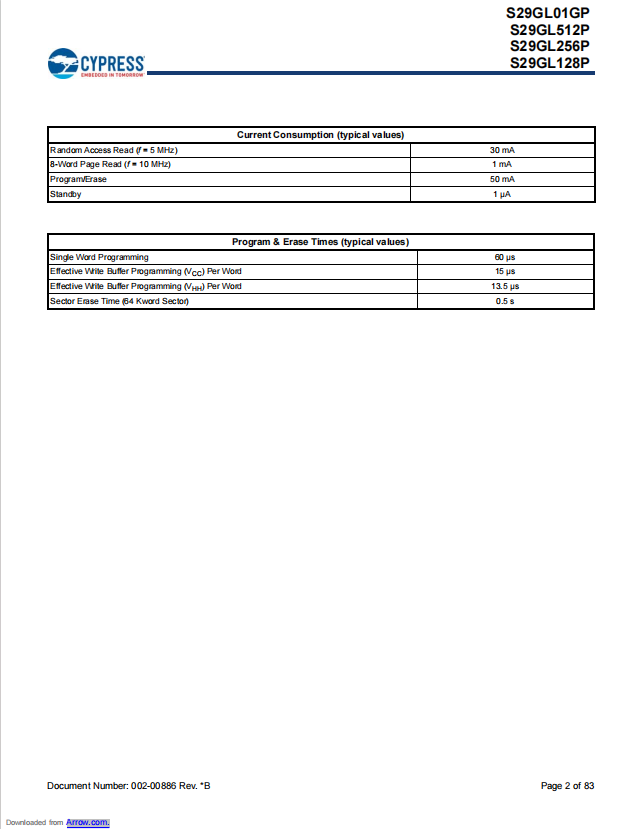

Product Data Book:



For more product information, please download the PDF
