Product Descriptions
ldeal for space-critical applications，the LM4041-Nprecision voltage reference is available in the sub-miniatureSC70 andSOT-23 surface-mountpackages. The advanced design of the LM4041-Neliminates the need for an externalstabilizingcapacitor while ensuring stability with any capacitiveload, thus making the LM4041-N easy to use. Furtherreducing design effort is the availability of a fixed(1.225 V) and adjustable reverse breakdown voltage.The minimum operating current is 60 uA for theLM4041-N 1.2 and the LM4041-N ADJ.Both versionshave a maximum operating current of 12 mA.
The LM4041-N uses fuse and Zener-zap reversebreakdown or reference voltage trim during wafer sortto ensure that the prime parts have an accuracy ofbetter than +0.1% (A grade) at 25C. Bandgapreference temperature drift curvature correction andlow dynamic impedance ensure stable reversebreakdown voltage accuracy over a wide range ofoperating temperatures and currents.
Product Applications
? Portable, Battery-Powered Equipment
? Data Acquisition Systems
? Instrumentation
? Process Control
? Energy Management
? Automotive
? Precision Audio Components
Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-LM4041CIM7-ADJ |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Reference | |
| Mfr | National Semiconductor |
| Series | - |
| Package | Bulk |
| Product Status | Active |
| Reference Type | Shunt |
| Output Type | Adjustable |
| Voltage - Output (Min/Fixed) | 1.24V |
| Voltage - Output (Max) | 10 V |
| Current - Output | 12 mA |
| Tolerance | ±0.5% |
| Temperature Coefficient | 100ppm/°C |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | 20μVrms |
| Voltage - Input | - |
| Current - Supply | - |
| Current - Cathode | 65 μA |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | LM4041 |

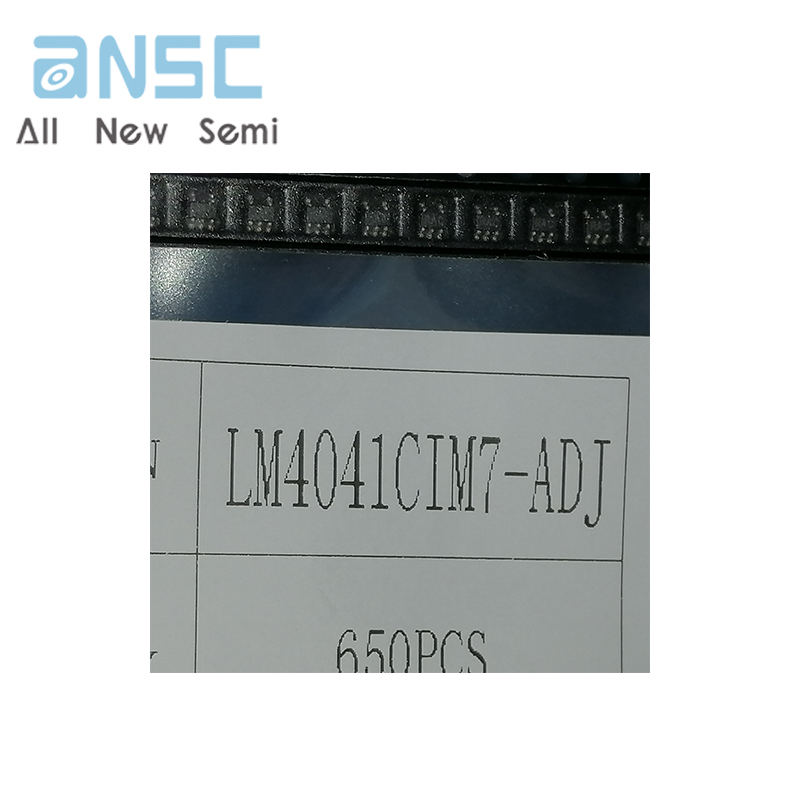

Actual product photos

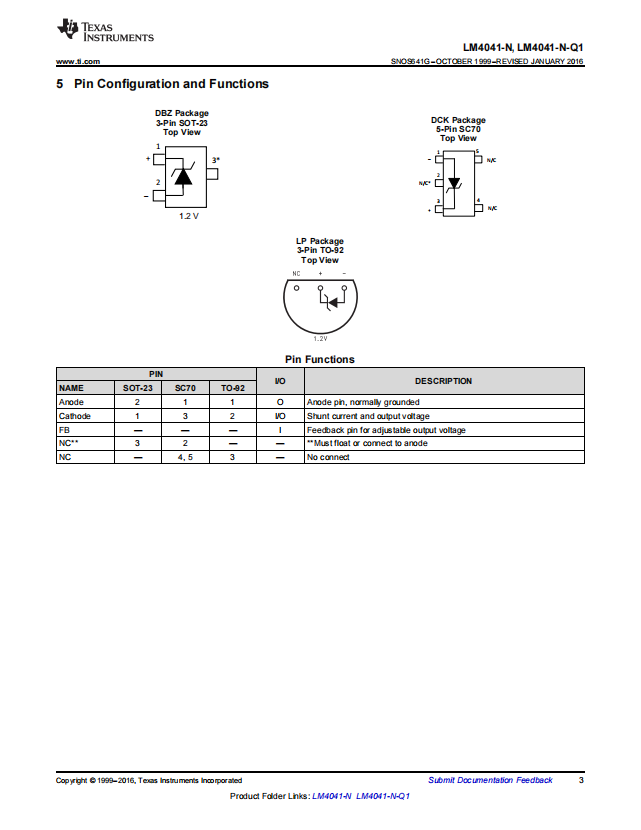

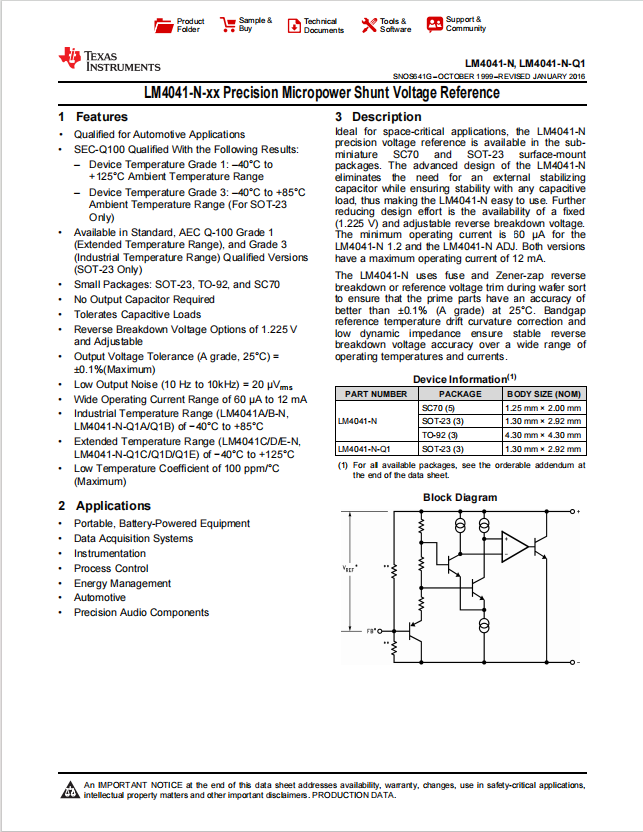

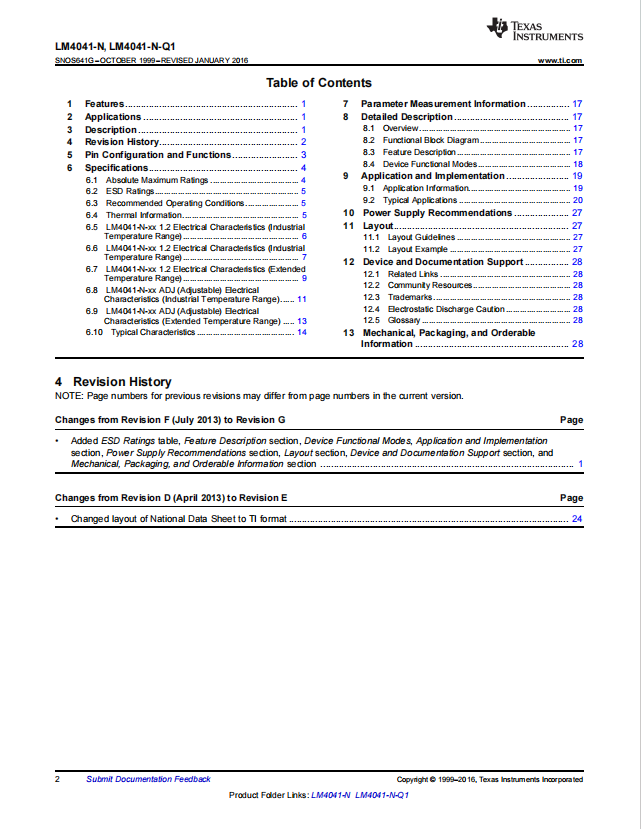

Product Data Book：
For more product information, please download the PDF
