Product Descriptions

Xilinx introduces the Platform Flash series of in-system programmable configuration PROMs. Available in 1 to 32 Mb densities, these PROMs provide an easy-to-use, cost-effective, and reprogrammable method for storing large Xilinx FPGA configuration bitstreams. The Platform Flash PROM series includes both the 3.3V XCFxxS PROM and the 1.8V XCFxxP PROM. The XCFxxS version includes 4 Mb, 2 Mb, and 1 Mb PROMs that support Master Serial and Slave Serial FPGA configuration modes.

The XCFxxP version includes 32 Mb, 16 Mb, and 8 Mb PROMs that support Master Serial, Slave Serial, Master SelectMAP, and Slave SelectMAP FPGA configuration modes.

When driven from a stable, external clock, the PROMs can output data at rates up to 33 MHz.

Product Features

? In-System Programmable PROMs for Configuration of Xilinx? FPGAs

? Low-Power Advanced CMOS NOR Flash Process

? Endurance of 20,000 Program/Erase Cycles

? Operation over Full Industrial Temperature Range (–40°C to +85°C)

? IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) Support for Programming, Prototyping, and Testing

? JTAG Command Initiation of Standard FPGA Configuration

? Cascadable for Storing Longer or Multiple Bitstreams

? Dedicated Boundary-Scan (JTAG) I/O Power Supply (VCCJ)

? I/O Pins Compatible with Voltage Levels Ranging From 1.8V to 3.3V

? Design Support Using the Xilinx ISE? Alliance and Foundation? Software Packages

? XCF01S/XCF02S/XCF04S

? 3.3V Supply Voltage

? Serial FPGA Configuration Interface

? Available in Small-Footprint VO20 and VOG20 Packages

? XCF08P/XCF16P/XCF32P

? 1.8V Supply Voltage

? Serial or Parallel FPGA Configuration Interface

? Available in Small-Footprint VOG48, FS48, and FSG48 Packages

? Design Revision Technology Enables Storing and Accessing Multiple Design Revisions for Configuration

? Built-In Data Decompressor Compatible with Xilinx Advanced Compression Technology

Specifications

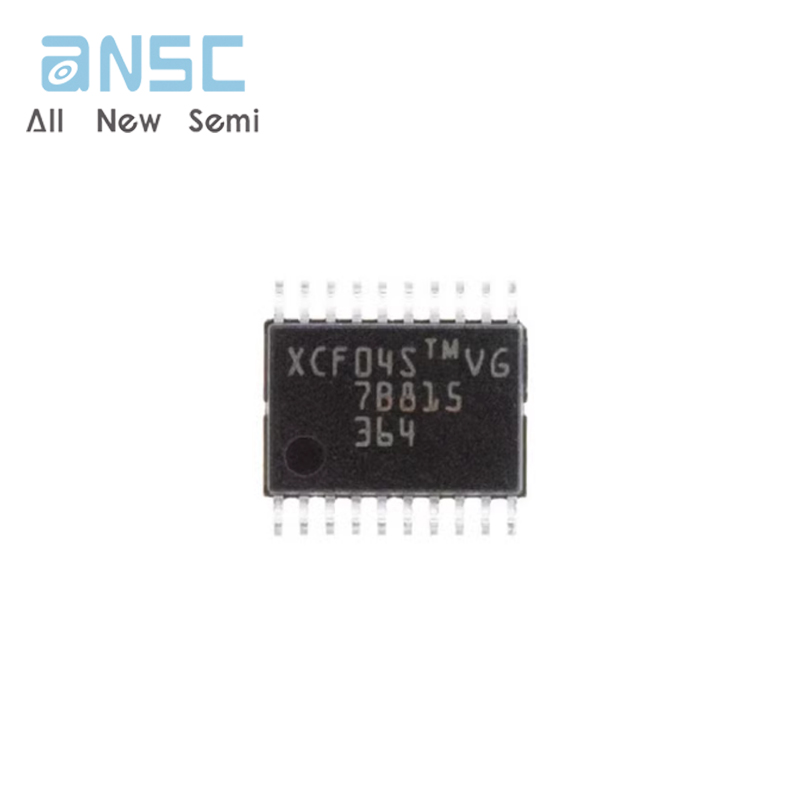

Actual product photos

Product Data Book：

For more product information, please download the PDF
