Professional supply TXB0102DCUR 2-BIT BIDIRECTIONAL VOLTAGE-LEVEL TRANSLATOR WITH AUTO DIRECTION SENSING AND15-kV ESD PROTECTION

TXB0102DCUR

Model:TXB0102DCUR

Manufacturer:TI

Package:8-VSSOP

詳情

Product Descriptions


The TXB0102 device is a 2-bit noninverting translator that uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. VCCA must not exceed VCCB.


When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.


This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs when the device is powered down. This inhibits current backflow into the device which prevents damage to the device.


OE must be tied to GND through a pulldown resistor to assure the high-impedance state during power up or power down; the minimum value of the resistor is determined by the current-sourcing capability of the driver.


NanoFree? technology is a major breakthrough in IC packaging concepts, using the die as the package.


Product Features


? Available in the Texas Instruments NanoFree? Packages

? 1.2 V to 3.6 V on A Port and 1.65 V to 5.5 V On B Port (VCCA ≤ VCCB)

? VCC Isolation Feature – If Either VCC Input Is at GND, All Outputs Are in the High-Impedance State

? OE Input Circuit Referenced to VCCA

? Low Power Consumption, 4-μA Max ICC

? Ioff Supports Partial-Power-Down Mode Operation

? Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

? ESD Protection Exceeds JESD 22

– A Port

? 2500-V Human-Body Model (A114-B)

? 200-V Machine Model (A115-A)

? 1500-V Charged-Device Model (C101)

– B Port

? 15-kV Human-Body Model (A114-B)

? 200-V Machine Model (A115-A)

? 1500-V Charged-Device Model (C101)


Product Applications


? Handsets

? Smartphones

? Tablets

? Desktop PCs


Specifications


Attribute

Attribute value

ANSM-Part#

ANSM-TXB0102DCUR

Category

Integrated Circuits (ICs)

Logic

Translators, Level Shifters

Mfr

Texas Instruments

Series

-

Package

Tape & Reel (TR)

Cut Tape (CT)

Digi-Reel?

Product Status

Active

Translator Type

Voltage Level

Channel Type

Bidirectional

Number of Circuits

1

Channels per Circuit

2

Voltage - VCCA

1.2 V ~ 3.6 V

Voltage - VCCB

1.65 V ~ 5.5 V

Input Signal

-

Output Signal

-

Output Type

Tri-State, Non-Inverted

Data Rate

100Mbps

Operating Temperature

-40°C ~ 85°C (TA)

Features

Auto-Direction Sensing

Mounting Type

Surface Mount

Package / Case

8-VFSOP (0.091", 2.30mm Width)

Supplier Device Package

8-VSSOP

Base Product Number

TXB0102


Actual product photos


TXB0102DCUR

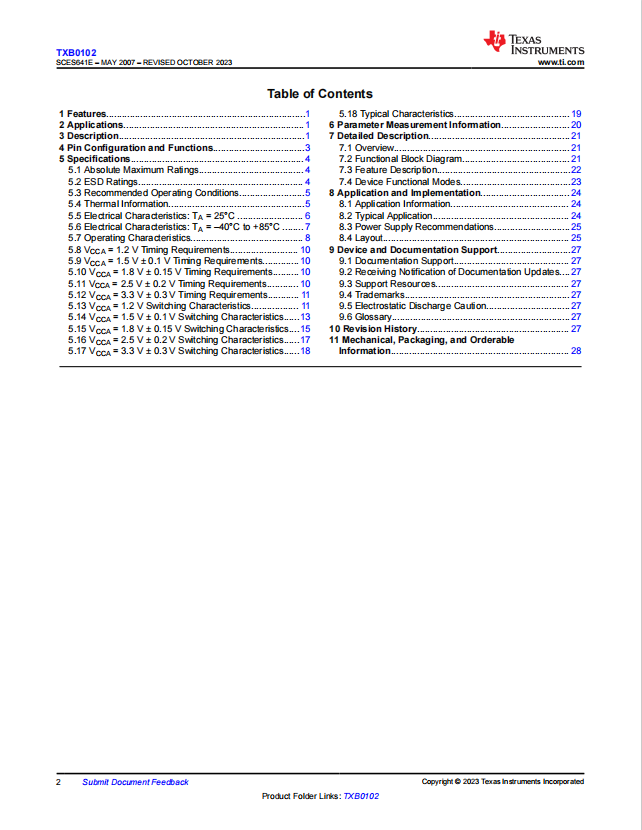

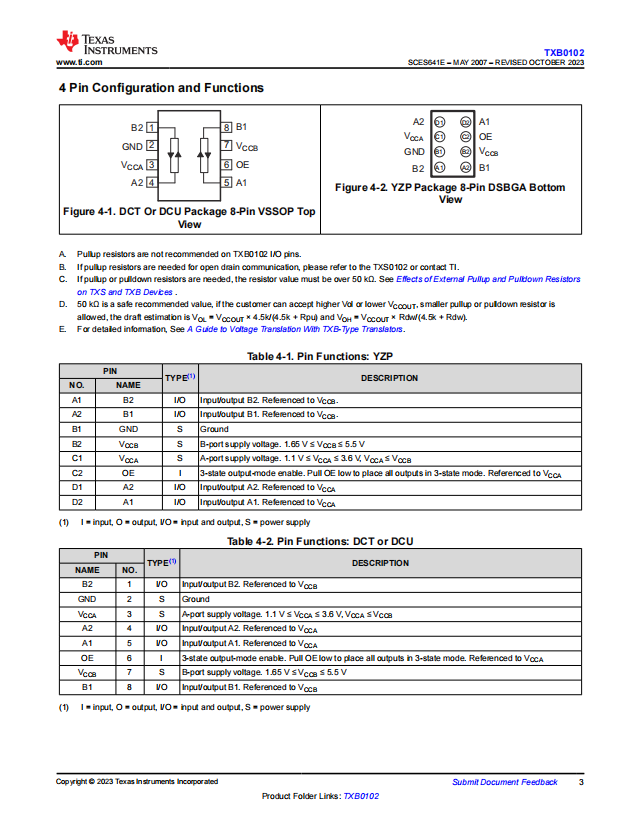

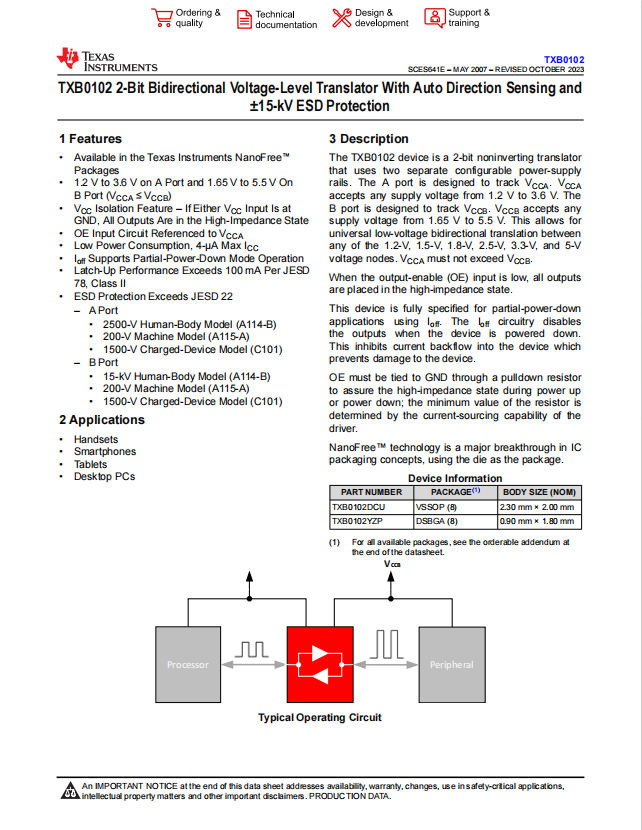

Product Data Book:



For more product information, please download the PDF
