Product Descriptions

? For high-density mounting and slim finished packaging, G6L uses 20% less mounting area and 67% less volume in comparison with the G5V-1 relay.

? Measures just 7.0 (W) x 10.6 (L) x 4.2 (H) mm for surfacemount or 3.8 (H) for through-hole.

? High dielectric strength: 1,000 VAC between coil and contacts and 750 VAC between contacts of the same polarity.

? Conforms to FCC Part 68 impulse withstand voltage rating of 1.5kV for 10 x 160 μs.

? Conforms to UL60950 (File No. E41515) / CSA C22.2 No. 60950 (File No. LR31928).

? Use of lead completely eliminated.

Attribute	Attribute value
ANSM-Part#	ANSM-G6L-1P DC12
Category	Relays
Category	Signal Relays, Up to 2 Amps
Mfr	Omron Electronics Inc-EMC Div
Series	G6L
Package	Tube
Product Status	Active
Mounting Type	Through Hole
Coil Voltage	12VDC
Contact Form	SPST-NO (1 Form A)
Contact Rating (Current)	1 A
Switching Voltage	125VAC, 60VDC - Max
Coil Current	15 mA
Coil Type	Non Latching
Features	-
Termination Style	PC Pin
Seal Rating	Sealed - Fully
Coil Insulation	-
Must Operate Voltage	9 VDC
Must Release Voltage	1.2 VDC
Operate Time	5 ms
Release Time	5 ms
Operating Temperature	-40°C ~ 70°C
Contact Material	-
Relay Type	Telecom
Coil Resistance	800 Ohms
Base Product Number	G6L

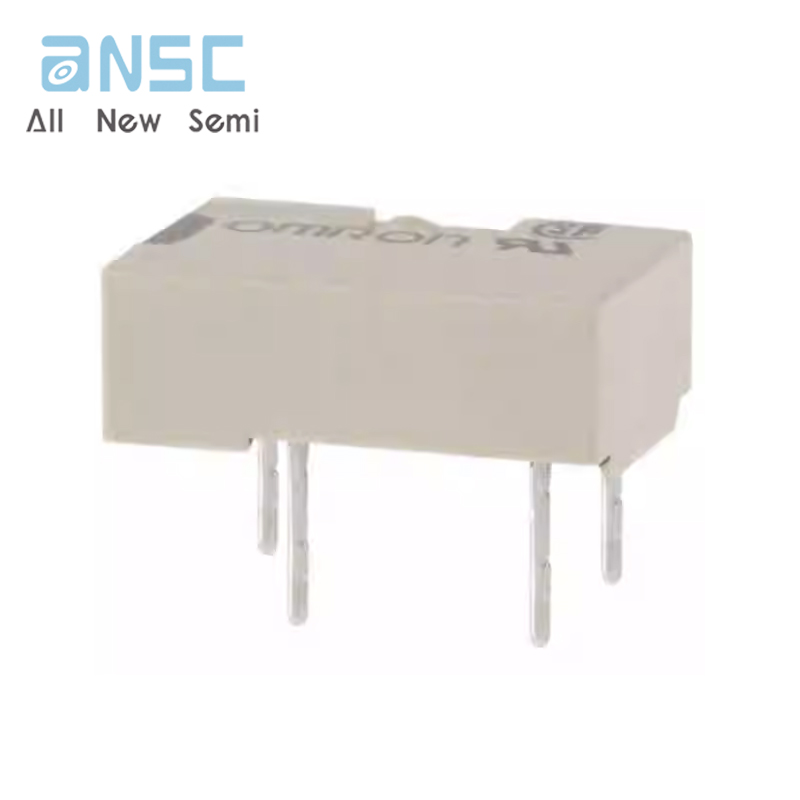

G6L-1P DC12

Product Data Book：

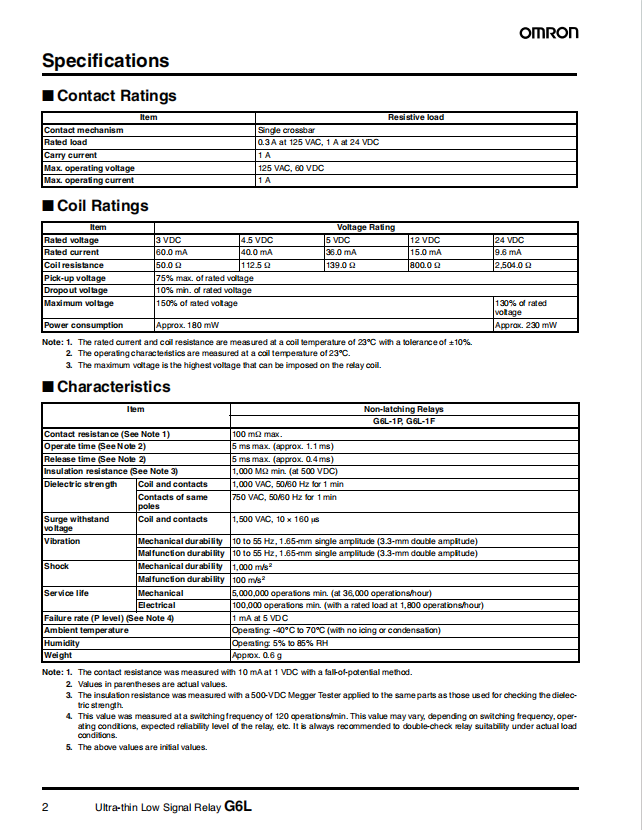

搜狗高速瀏覽器截圖20231227094913

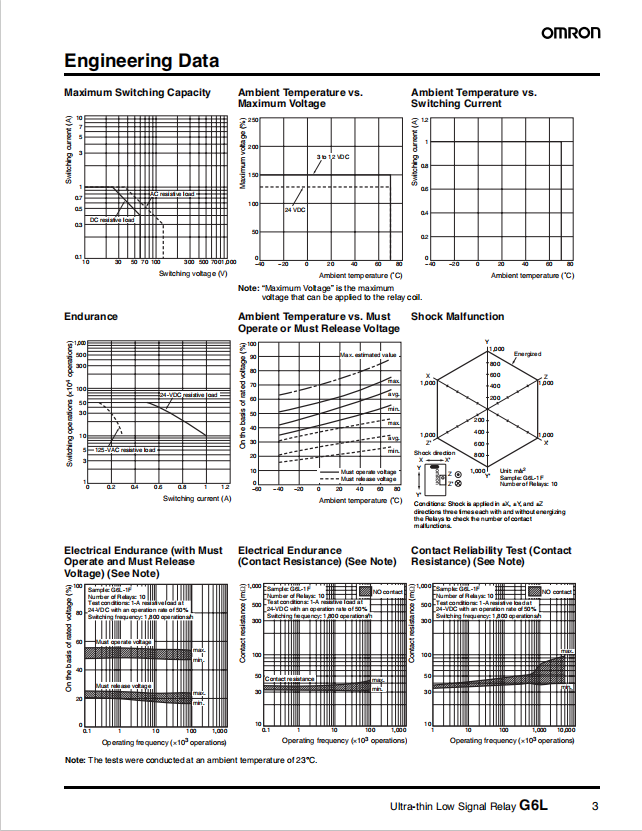

搜狗高速瀏覽器截圖20231227094918

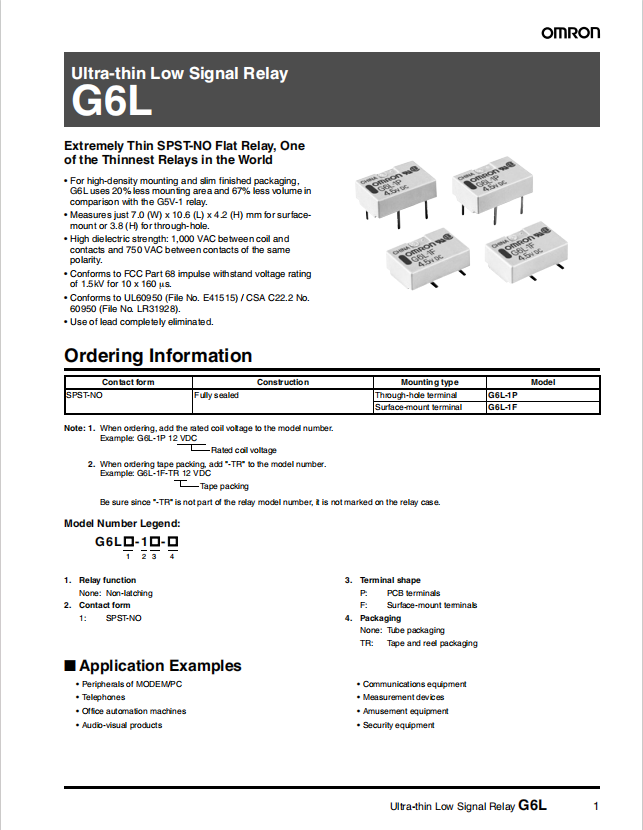

搜狗高速瀏覽器截圖20231227094923

For more product information, please download the PDF
